TOA High-performance Flush-mount Ceiling Subwoofer - FB3862CUAMC00

Authorized Dealer Price Match Guarantee
Price Match Guarantee
LR Brown offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.

TOA High-performance Flush-mount Ceiling Subwoofer - FB3862CUAMC00

FB3862CUAMC00


Black Friday Sale Now On
Literature

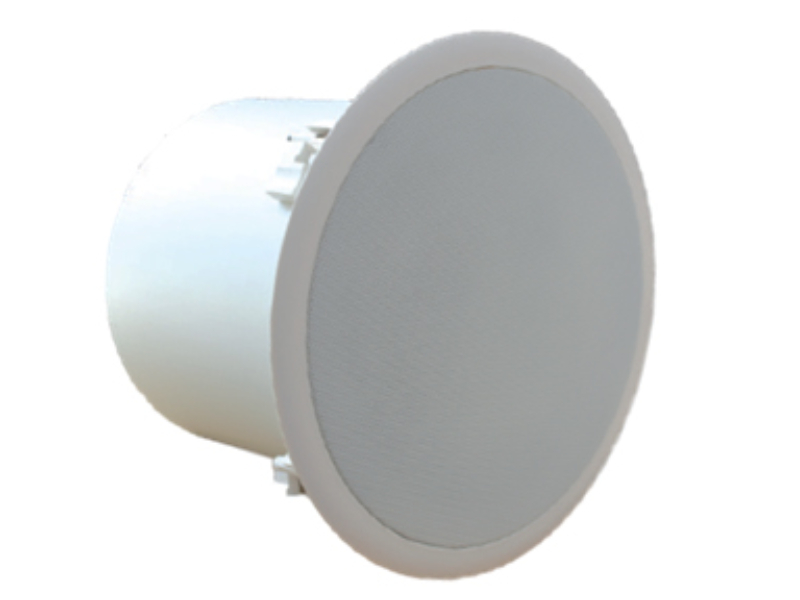

The FB-3862CU is a high-performance flush-mount ceiling subwoofer assembly for low frequency enhancement of distributed loudspeaker systems. A 60W 70/100V transformer is included, and the bandpass design eliminates the need for a bi-amplified system. The 8-Ohm bypass allows for applications using electronic crossovers and dedicated low impedance power amplifiers.

HY-BC2W white enclosure now available.

Specifications
EnclosureBandpass
Rated Input60W (70/100V)
Power Handling Capacity100W RMS 200W Peak (low impedance)
Impedance70V line- 60W/30W/15W/7.5W/3.8W/1.9W with 8 Ω bypass
Sensitivity88dB 1W/1m
Frequency Response47-200 Hz (-10dB)
Speaker Component8” driver with oiled paper cone and foam surround
CertificationUL2043/UL1480A. Baffle meets UL 94-V0 flammability rating. RoHS and CE compliant
Mounting Hole350mm diameter (13.8")
Input TerminalPhoenix-type with paralleloutputs (max 12AWG stranded cable)
Recommended CableMax 12AWG stranded unshielded twisted pair (jacket per code)
FinishWhite
Dimensions383 mm diameter x 326.5 mm height (15.08" x 12.85")
Weight6.45 kg (14.22 lbs.)
Included AccessoriesSteel support ring (C-ring) qty. 2, steel support rails qty.2, speaker hole template qty.2, operation manual qty.
Option AccessoriesSupport and safety cables (load rated chain or load rated aircraft cable) HY-BC2W white enclosure
