TOA 2-Way Coaxial Horn Speaker - CS-761W
TOA 2-Way Coaxial Horn Speaker - CS-761W

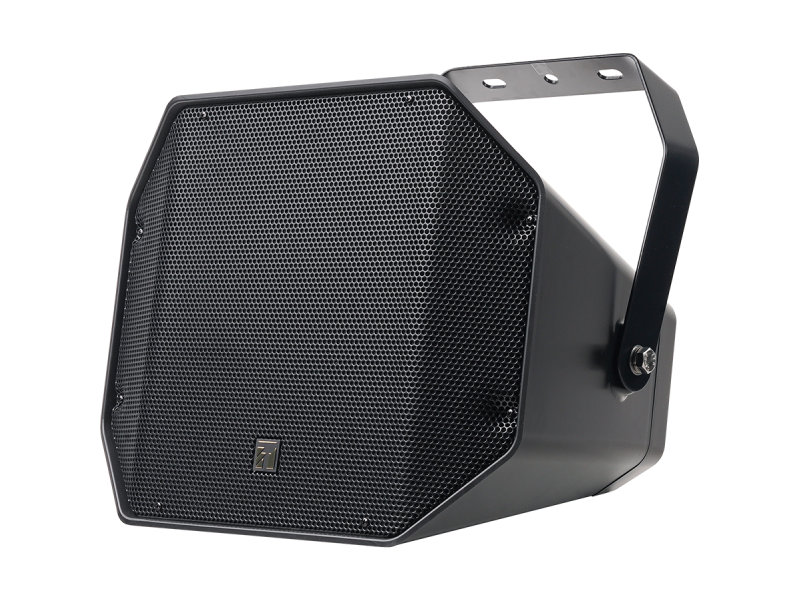

TOA 2-Way Coaxial Horn Speaker - CS-761B
Authorized Dealer
Price Match Guarantee
Price Match Guarantee
LR Brown offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.
More options
Literature
The CS-761W is a two-way speaker featuring a coaxially positioned 16 cm ( 6.5") cone speaker and 2.5 cm ( 1") tweeter. This speaker provides high-quality sound broadcasts with excellent clarity, not only indoors, but also in semi-outdoor facilities such as multistory parking structures, and even in outdoor applications such as sports grounds and parks. It also complies with IP66 Dustproof and Waterproof Standards.
| Specifications | |
|---|---|
| Rated Impedance | 100 V line: 170 Ω(60 W), 330 Ω (30 W), 670 Ω (15 W), 1.3 kΩ (7.5 W)70 V line: 83 Ω (60 W), 170 Ω (30 W), 330 Ω (15 W), 670 Ω (7.5 W) |
| Rated Input | 60W |
| Sensitivity | 100 dB (1 W, 1 m) (1 kHz - 10 kHz, pink noise) |
| Frequency Response | 100 Hz - 20 kHz |
| Speaker Component | Low frequency: 16 cm ( 6") cone-type, High frequency: 2.5 cm ( 1 ") tweeter |
| Directivity Angle | Horizontal: 90', Vertical: 80' |
| Operating Temperature | -10 'C to +50 'C (14 'F to 122 'Fl |
| Dust/Water Protection | IP66 |
| Connection | Speaker cable (Hot: Black, Com: White) |
| Finish | Enclosure: ABS resin, white ( RAL 9011 equivalent), paintPunched net: Steel plate, white ( RAL 9011 equivalent), paintBracket: Stainless steel, white ( RAL 9011 equivalent), powder coating |
| Dimensions | 388 (W) X 310 (H) X 367 (D) mm (15.28" X 12.2" X 14.45") |
| Weight | 7.6 kg (16.75 lb) |
| Option | Speaker mount bracket: SP-201Pole band: YS-60BSpeaker stand: ST-34B |
