Samson Handheld USB Digital Wireless System - SWXPD2HQ6

The Samson XPD2 Handheld system allows you to bring a wireless microphone to a variety of sound applications via its uniquely designed USB stick receiver. Offering simple setup, professional full-range audio and 100' of wireless operation, the XPD2 Handheld is perfect for live performances, digital communications and mobile productions.

Highlights

Easy Addition

The XPD2 handheld system combines incredible audio quality, ease of use, and micro-receiver technology to make integrating wireless microphones into your audio production extremely easy and affordable.

More Ways To Connect

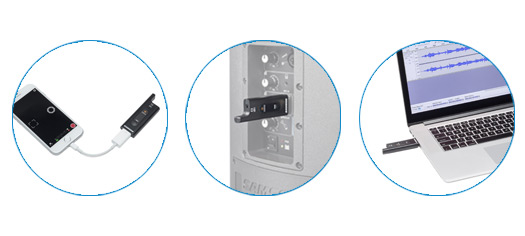

The RXD2 USB stick receiver connects directly to PC or Mac computers, or to any Samson Expedition Series Portable PA system that has a USB wireless port. An added feature from the previous generation system, the 1/8" (3.5mm) output allows for headphone monitoring, or the XPD2 handheld can be used with any device that has an analog line input, including smartphones and other mobile devices.

To connect to an iOS device, Apple's Lightning to USB Camera Adapter is required. To connect to an Android device, a host OTG adapter is required

High-Quality Digital Sound

XPD2 Wireless delivers its high-quality audio through digital transmission. This type of wireless technology allows the HXD1 handheld transmitter to send an uncompressed signal to the receiver. The result is a higher signal-to-noise ratio compared to a traditional wireless system, and performance that sounds as good as a wired microphone.

Even More Ways to Connect

A streamlined setup is essential to empower any active performer or presenter. The RXD2 USB key receiver easily connects to any Samson Expedition Series portable PA system or mixer with a USB wireless port. The RXD2 has a 1/8" (3.5mm) analog output that can be used with headphones or to connect to other devices with an analog input. A USB-A to USB-C adapter is also included for use with other compatible devices*.

USB Digital Wireless

The XPD2 is a wireless microphone solution for content creation, digital communication and live sound reinforcement. Offering easy setup and professional full-range audio, the XPD2 features a uniquely designed USB stick receiver that connects to computers, smartphones and XPD Wireless-enabled Samson portable PA systems.

Features

• 2.4GHz USB digital wireless system
• Ideal for broadcasting, live streaming, presentations and more
• Plug-and-play operation with Mac and Windows
• Works with iPad via Apple's Lightning to USB Camera Adapter
• Works with Android devices via a host OTG adapter
• RXD2 USB stick receiver
• Receiver features a 1/8" (3.5mm) headphone/monitor output

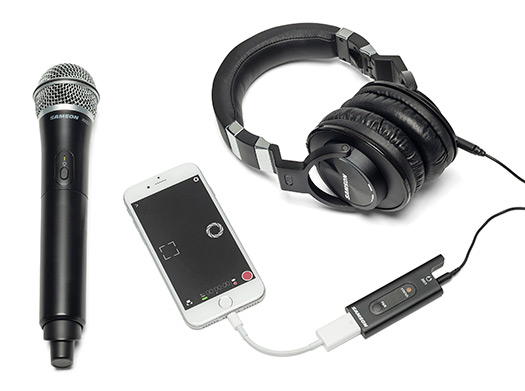

• HXD1 handheld microphone transmitter with Samson Q6 Dynamic Microphone element
• Transmitter offers 20 hours of battery life using two AA batteries (not included)
• 100' operating range (line of sight, environment dependent)
• 1-touch pairing, adjustable Volume controls on transmitter
• Compatible with Samson Expedition Series Portable PAs that feature USB Wireless ports
• Includes mic clip and USB extension cable

Specifications

XPD2 USB Digital Wireless System

• Simultaneous Systems: 2
• Working Range: 100' (30m) line of sight
• Working Frequency: 2.404~2.476GHz
• Modulation type: GFSK
• Audio Frequency Response: 20Hz–16KHz
• T.H.D.: <0.1% (@ 1KHz, -10dBu)
• Signal to Noise: >85dB

RXD2 USB Receiver

• Max. Analog Audio Output Level: 0dBu
• Audio Output Impedance: 100KΩ
• USB audio sample rate: 32KHz
• Operating Voltage: 5V DC
• Dimensions: 3.5" x 0.9" x .31" (89 mm x 23mm x 8mm)
• Weight: 0.35oz (10g)

HXD1 Handheld Transmitter

• Microphone Element: Q6 dynamic
• RF Power: <10 mW EIRP
• Power Requirements: Two AA (LR6) alkaline batteries
• Battery Life: 20 hours
• Dimensions: 10.2" x ø2.1" (260mm x ø54mm)
• Weight: 0.5lb (218g)
