Pro G7100 XGA 3LCD Projector with Standard Lens V11H754020

Authorized Dealer Price Match Guarantee

Price Match Guarantee

LR Brown offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.

Quote Request

V11H754020
Best Deal Promise

Literature

Description
Features

Bright large-venue projector with powered lenses and HDBaseT.

The Pro G7100 large-venue projector delivers uncompromising image quality and XGA resolution. Offering 3x Higher Color Brightness* than competitive models, Epson® 3LCD projectors ensure vivid images. Ideal for events staging, auditoriums and sanctuaries, the innovative G7100 features 6500 lumens of color brightness and 6500 lumens of white brightness1. Flexible integration features include an array of connectivity options, with support for HDBaseT, HDMI® and DVI-D inputs. It also offers nine optional interchangeable lenses with powered lens shift and lens memory (Ships with Middle#1 Lens - V12H004M08). Additional advanced capabilities include simultaneous projection from multiple sources and Web-based remote projector monitoring and control.

3x Higher Color Brightess with Epson*

Brilliant image quality requires high color brightness. Epson 3LCD projectors have 3x Brighter Colors than leading competitive projectors*. Delivering 6500 lumens of color brightness1 and 6500 lumens of white brightness1, the PowerLite Pro G7100 uses 3LCD, 3-chip technology for brilliant images with true-to-life color.

Projection System: High-aperture Epson 3-chip 3LCD technology
Native Resolution: XGA (1024 x 768)
Color Brightness: 6500 lumens1
White Brightness: 6500 lumens1
Model: V11H754020
Bright and Colorful

Features 8000 lumens of color brightness (color light output)1 and 8000 lumens of white brightness (white light output)1.

XGA Resolution

1024 x 768 resolution

HDBaseT

Combines HDMI, ethernet and RS-232 into one cable

Advanced Edge Blending

Get seamless panoramic, multi-screen edge blending on horizontal or vertical walls, with curved surface and corner wall support.

Optional Lenses

Interchangeable lens options with varying ranges for optimal placement and flexibility

Portrait Mode

Allows you to turn the projector 90 degrees – great for digital signage, fashion shows, art galleries and museums

3x Higher Color Brightness* and reliable performance — 3LCD, 3-chip technology
One measurement of brightness is not enough — look for both high color brightness and high white brightness.
The PowerLite Pro G7100 has:
Color Brightness: 6500 lumens1
White Brightness: 6500 lumens1
Brilliant images — XGA (1024 x 768) resolution for presentations, videos, digital signage and more
Nine optional interchangeable lenses — with powered lens shift and lens memory, including an ultra short-throw lens for shallow spaces (standard lens included)
Versatile connectivity — supports the full range of inputs, including HDBaseT, HDMI®, DVI-D, VGA and 5-BNC, for easy integration with any system
Advanced collaboration features — simultaneously project side-by-side from different sources with Split Screen2
Web-based remote management — control and monitor projector status via a Web browser
Multi-PC Projection — connect up to 50 Windows®, Mac®, iOS® or Android devices and display up to four screens simultaneously over the network (controlled via the Moderator3 function)
Dynamic projection capabilities — advanced built-in Edge Blending, image warping and curved-surface correction technologies for a variety of applications
Professional installation features — full 360-degree installation flexibility, including Portrait Mode
Epson Warranty — Three-year limited warranty, Epson Road Service Program , Epson PrivateLine® dedicated toll-free support (U.S. and Canada only) and 90-day limited lamp warranty

Eco Features

RoHS compliant
Recyclable product4
Epson America, Inc. is a SmartWay™ Transport Partner5

Specifications Projector:
Projection System:	High-aperture Epson 3-chip, 3LCD technology
Projection Method:	Front / rear / ceiling mount
Driving Method:	Epson Poly-silicon TFT Active Matrix
Pixel Number:	786,432 dots (1024 x 768) x 3
Colour Brightness - Colour Light Output:	6500 lumens1
White Brightness - White Light Output:	6500 lumens1
Aspect Ratio:	Supports 4:3, 16:9, 16:10
Native Resolution:	1024 x 768 (XGA)
Resize:	640 x 480, 800 x 600, 1280 x 1024, 1400 x 1050
Lamp Type:	400 W UHE
Lamp Life:	Normal mode: Up to 3000 hours2, ECO mode: Up to 4000 hours2
Brightness Uniformity:	(typical) 90%
Pixel Arrangement:	Cross stripe
Throw Ratio Range:	(For Standard Lens) 1.44 – 2.32
Size - projected distance:	50" – 300"
Keystone Correction:	(For Standard Lens), Horizontal: ±30 degrees, Vertical: ±45 degrees
Colour Reproduction:	Up to 1 billion colours
Effective Scanning Frequency Range:
Pixel Clock	13.5 MHz – 162 MHz (up to UXGA 60 Hz), Horizontal 15 KHz – 92 KHz, Vertical 50 Hz – 85 Hz
General:
Temperature:	32° to 113° F (0° to 45° C)
Weight:	28.4 lb (with standard lens)
Security:	Security cable hole, Lens lock, Kensington® lock provision
Projection Lens:
Type:	(For Standard Lens) Powered focus / zoom
F-number:	(For Standard Lens) 1.70 – 2.30
Focal Length:	(For Standard Lens) 24.0 mm – 38.2 mm
Zoom Ratio:	(For Standard Lens) Optical zoom 1.0 – 1.6x
Lens Shift:	(For Standard Lens), Vertical: ±67 degrees, Horizontal: ±30 degrees
Projector Details:
Display Performance:	NTSC: 480 line, PAL: 576 line, (depends on observation of the multi-burst pattern)
Input Signal:	NTSC/NTSC4.43/PAL/M-PAL/N-AL/PAL60/SECAM/480i/576i/480p/576p/720p/1080i/1080p, Pixelworks®:Video Chip 3D Y/C separation, noise reduction motion compensated Interlace-Progressive conversion (2 - 2, 3 - 2 film detection)

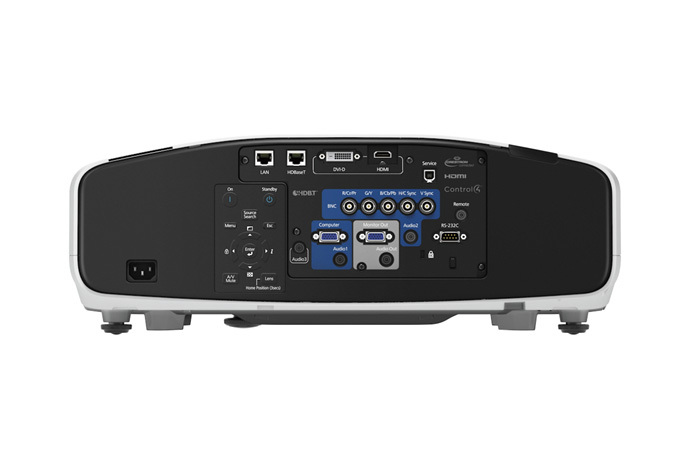

Interfaces:	HDBaseT x 1, DVI-D x 1, HDMI x 1, Computer: D-sub 15 pin x 1, Component Video: BNC x 1, Audio-in: Mini stereo x 3, Audio Out x 1, Network: RJ-45 x 1, 100 Mbps Serial: RS-232c, Hardwire remote jack x 1, Monitor Out: D-sub 15 pin x 1
Fan Noise:	Normal mode: 39 dB, ECO mode: 31 dB
Projector Dimensions:
Including feet:	With standard lens: 20.67 x 18.58 x 7.44 (W x D x H)
Excluding feet and lens:	20.67 x 16.73 x 7.28 (W x D x H)
Remote Control:
Features:	Power, source search selection, computer, video, A/V Mute, freeze, user ID, auto, aspect, colour mode, number, page up and down, E-zoom, volume, help, menu, enter, esc and pointer functions
Operating Distance:	49 ft
Operating Angle:	Right / Left: Front: ±60 degrees Rear: ±30 degrees Upper / Lower: Front: ±20 degrees Rear: +10 to +50 degrees
Power:
Power Supply Voltage:	100 – 240 V ±10%, 50/60 Hz AC
Power Consumption:	Normal mode: 540 W, ECO mode: 498 W, Communication on: 3.0 W standby, Communication off: 0.5 W standby
