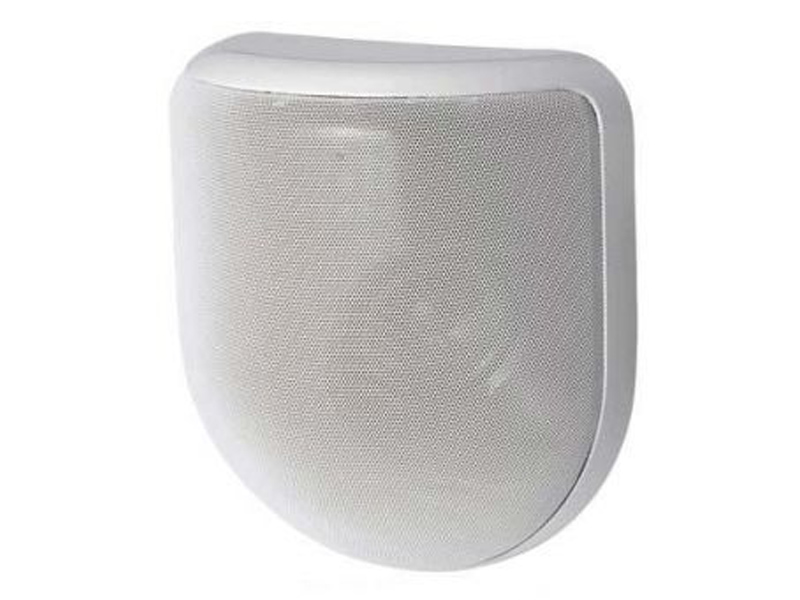

TOA Waterproof Wide-Dispersion Speaker - H-3WP EX
Authorized Dealer
Price Match Guarantee
THE H-3WP EX WIDE-DISPERSION WALL-MOUNT SPEAKER addition to the TOA Interior Design Series and continues TOA's modern, innovative approach to commercial speaker design. The H-3 EX's unique appearance and superb sound quality providea welcome alternative to conventional wall-mount speakers for spaces where appearance is a prime consideration
Applications include speaker systems for hotels, houses of worship, offices, museums, residential spaces, restaurants, retail stores, and many others. A weather-resistant version, model H-3WP EX, is available for outdoor applications such as gardens, patios and swimming pools.
The H-3 EX's wide 140 degree horizontal coverage pattern provides a solution for eliminating deadspots inherent between wall-mounted speakers. Also, the Minimum Reflection design significantly reduces sound wave reflections and the resulting sound coloration that occurs with conventional bracket-mounted "box" type speakers.
| Specifications | |
|---|---|
| Enclosure | Sealed type |
| Power Handling Capacity | 150 W (Continuous program/8 Ω)50 W (Continuous pink noise/8 Ω) |
| Rated Input | 30 W (16 Ω, high impedance) |
| Rated Impedance | 8 Ω, 16 Ω100 V line: 330 Ω (30 W), 670 Ω (15 W), 1.3 kΩ (7.5 W)70 V line: 170 Ω (30 W), 330 Ω (15 W), 670 Ω (7.5 W), 1.3 kΩ (3.75 W) |
| Sensitivity | 89 dB (1 W, 1 m) at installation in 1/2 free sound field(Measured by installing the unit in the center of a wall.) |
| Frequency Response | 100 Hz - 20 kHz (-10 dB) at installation in 1/2 free sound field(Measured by installing the unit in the centerof a wall.) |
| Crossover Frequency | 4 kHz |
| Water Resistance | IPX4 |
| Speaker Component | Low frequency: 10 cm cone-type × 2High frequency: 2.5 cm dome-type (neodymium magnet) |
| Input Terminal | Detachable screw terminal, (+)/(-) 2 each (for bridging connection) |
| Usable Cable | Solid cable, stranded cable: 0.2 - 2.5 m㎡ (AWG No.24 - 14) |
| Finish | Enclosure: Fire-resistant ABS resin, blackFront frame: Fire-resistant ABS resin, off-white, paintPunched net: Steel plate (zinc plating), off-white, powder coatingBase frame: Stainless steel |
| Dimensions | 295 (W) × 318 (H) × 129 (D) mm |
| Weight | 3.3 kg |
| Accessory | Front grille ……1, Base frame ……1, Electrical box mounting screw ……1 set |
| Usable Electrical Box | 2-gang type |
