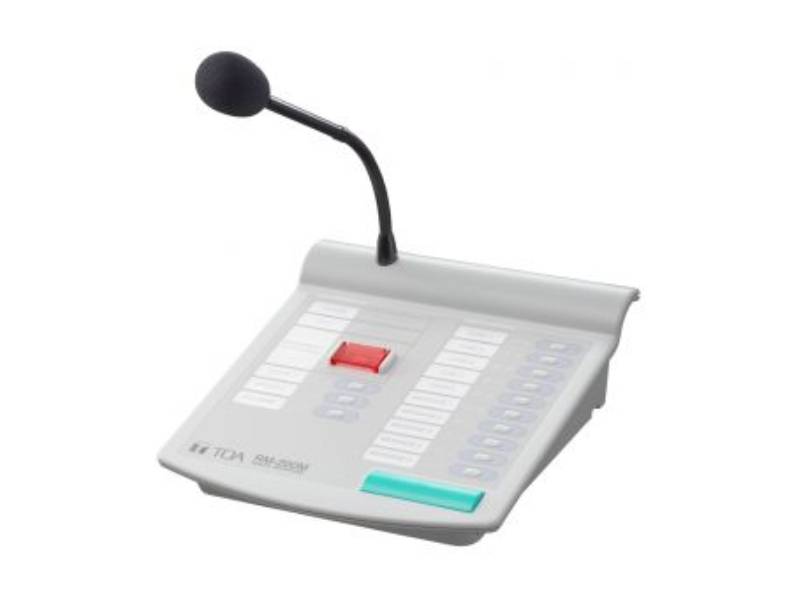

TOA Unidirectional Electret Condenser Remote Microphone - RM-200M SQ
The VM-3000 Series is the world's first Voice Evacuation System complying with both American and Canadian standards UL 2572 and CAN/ULC-S576 listings. It is ideal for small and medium-sized applications. It incorporates such emergency functions as continuous speaker line monitoring and a built-in voice alarm. This easy-to-install system also offers PA broadcasting, paging and BGM functions that ensure consistently high intelligibility. The VM-3000 Series is digitally audio processed and controlled, and may be set up and operated directly by using the controls and LCD display on the front panel. A dedicated PC software configuration capability is also provided for establishing settings via LAN. The incorporation of wide-ranging functional capabilities, superb reliability and versatility make the VM-3000 a highly cost-effective emergency broadcast system.
Up to four remote microphones can be connected to the RM-200M Remote Microphone but the maximum connection length for all cables is approximately 800 meters. An external microphone input terminal is provided to allow using a headset microphone, along with built-in internal compressor circuitry to ensure broadcasts are always clear and distortion-free. The TALK button may be a PTT or lock-type, which also provides an "AUTO MIC Off" capability to automatically switch off the microphone if the TALK switch is inadvertently left on. The emergency activation button is equipped with a cover in case of accidental selection.
Specifications | |
---|---|
Power Source | 22 V DC Power input jack: Non-polarity type Usable power input plug: Outer diameter ø5.5 mm, inner diameter ø2.1 mm, length 9.5 mm |
Current Consumption | Under 100mA |
Audio Output | 0dB*, 600Ω, balanced |
Frequency Response | 100 – 20 kHz |
Distortion | Under 1% |
S/N Ratio | Over 60 dB |
Microphone | Unidirectional electret condenser microphone |
Function Key | Number of keys: 10 Function: "Broadcast zone selector" or "Automatic general broadcast Announcement Start" (Either function is assigned to individual keys by the dedicated software.) |
Volume Control | Microphone volume control |
Connection and Cable Connector | Category 5 Shielded Twisted-Pair cable, RJ45 connector |
Finish | ABS resin, blueish gray (PANTONE 538 or equivalent) |
Dimensions | 190 (W) x 76.5 (H) x 215 (D) mm (7.48” x 3.0” x 8.5”) (Gooseneck microphone excluded) |
Weight | 750g (1.6 lbs) |
Accessories | Link cable (3 m) x 1 |
Option | Wall mounting bracket: WB-RM200 |
UL Certified | UL 2572 and CAN/ULC-S576 |
