TOA H Series Interior Design 2-Way Surface-Mount Speaker - H-2 EX

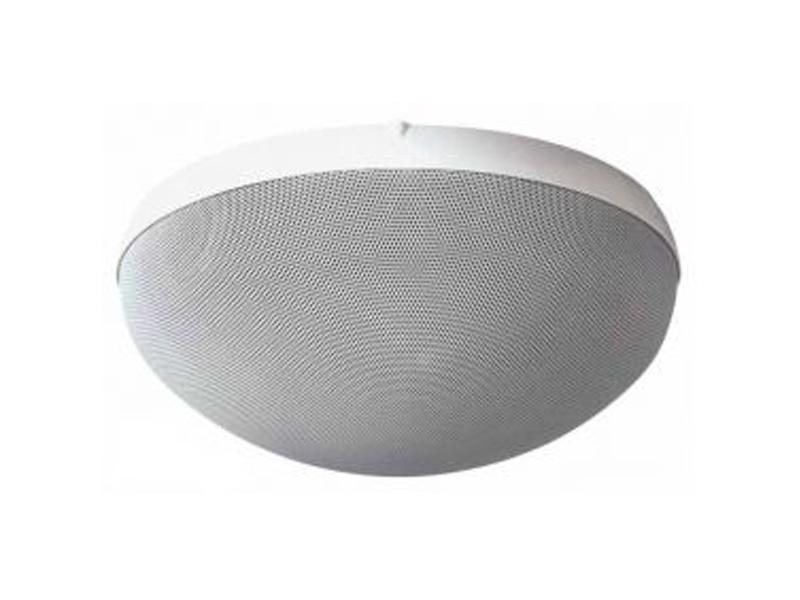

The H-2 is a dome-shaped, small surface-mount 2-way speaker that ensures quality sound reproduction. The angle of speaker can be adjusted for 360 degrees parallel to the mounting surface.
THE H SERIES INTERIOR DESIGN SPEAKERS are the latest example of TOA's modern, innovative approach to commercial speaker design. The unique, stylish appearance and superb sound quality of the three new models, the H-1 EX, H-2 EX and H-2WP EX, provide a welcome alternative to conventional wall-and ceiling-mount speakers. Applications include speaker systems for houses of worship, hotels, offices, museums, restaurants, retail stores, residential spaces and many others. The H-2WP EX is a weather-proof version of the H-2 EX for outdoor wall-mount applications such as terraces, gardens, patios and swimming pools.The H Series Minimum Reflection design significantly reduces sound wave reflections and the resulting sound coloration that occurs with conventional bracket-mounted "box" type speakers. Wall- or ceiling-mount installation is fast and easy using standard electrical gang-boxes, and you can rotate and aim the loudspeaker components without altering the enclosure's external appearance. Each H Series speaker has a paintable grille and features a high quality Ferrofluid-cooled dome tweeter, Neodymium woofer, 70.7/100 V matching transformer and removable terminal block. 900MK2 Processor Modules are also available for convenient system equalization using the industry-standard TOA 900MK2 Series Mixer/Amplifiers.
* Note: For outdoor installation, it is recommended that they are installed under roofs, eaves, or in other locations not directly exposed to rain or snow.
Specifications | |
---|---|
Enclosure | Sealed type |
Power Handling | 120 W (continuous program/4 Ω), 40 W (continuous pink noise/4 Ω) |
Rated Input | 12 W (16 Ω, high impedance) |
Rated Impedance | 4 Ω, 16 Ω100 V line: 830 Ω (12 W), 1.7 kΩ (6 W), 3.3 kΩ (3 W) 70 V line: 420 Ω (12 W), 830 Ω (6 W), 1.7 kΩ (3 W), 3.3 kΩ (1.5 W) |
Sensitivity | 88 dB (1 W, 1 m) at installation in 1/2 free sound field (Measured by installing the unit in the center of a wall.) |
Frequency Response | 100 Hz - 20 kHz |
Speaker Component | Low frequency: 10 cm cone-type, High frequency: Balanced dome-type |
Input Terminal | Detachable screw terminal, (+)/(-) 2 each (for bridging connection) |
Usable Cable | Solid cable, stranded cable: 0.2 - 2.5 m㎡ (AWG No. 24 - 14 equivalent) |
Finish | Punched net: Steel plate, white, paint Frame: Fire-resistant ABS resin, white, paint Base frame: Steel plate |
Dimensions | φ268 × 111 mm |
Weight | 2.1 kg (including base frame) |
Accessory | Base frame ……1, Electrical box mounting screw ……1 set |
Usable Electrical Box | 1-gang type (with cover)(*1) |
Other Feature | Angle of speaker: 360 degrees adjustable in parallel to the mounting surface |
