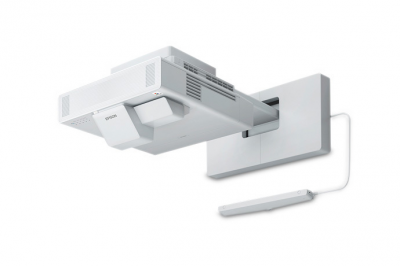

Epson BrightLink 1485Fi 1080p 3LCD Interactive Laser Display - V11H919520

Authorized Dealer Price Match Guarantee

Price Match Guarantee

LR Brown offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.

Quote Request

V11H919520
Best Deal Promise

Literature

Description
Features

Bring collaboration to classrooms and meeting spaces with this interactive HD 1080p laser display1

Create engaging and collaborative learning environments with the BrightLink 1485Fi 1080p1 3LCD interactive laser display. Providing 5,000 lumens of colour and white brightness2 and a virtually maintenance-free 20,000-hour laser light source with no lamps3, this reliable, ultra bright interactive display supports easy reading, instruction and communication. The flexible 1485Fi projects large, 100", 16:9 and super-wide, 120", 16:6 images, offering up to 95 percent more interactive space vs. a 75" flat panel. Designed for easy collaboration, the 1485Fi supports PC-free whiteboarding, printing, emailing and more. Plus, it easily hosts other network-connected BrightLink projectors4, allowing up to eight users to work on a single interactive canvas from multiple locations. Now with automatic image adjustment, simplified calibration and a single-cable, HDBaseT control pad, installation has never been easier.

Overview

BrightLink training resources

browse training videos and resources for BrightLink interactive displays

Super bright

5,000 lumens colour/white brightness2; 1080p Full HD laser display1

Flexible image sizes

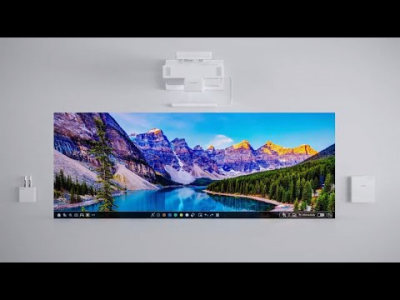

projects large, 100", 16:9 or super-wide 120", 16:6 images — up to 95 percent more interactive space vs. a 75" flat panel

Solid-state laser light source

virtually maintenance-free 20,000-hour laser light source with no lamps3

Easy installation

automatic image adjustment and simplified calibration makes installation easier than ever before

Easy operation

touch and pen-enabled interactivity5 allows up to eight users to collaborate at once

Improved cable management — HDBaseT control pad supports, video, audio and interactive functions, reducing the number of cables and making installation a snap6
Built-in wireless — use free Epson iProjection™ software to connect, display and share content simultaneously to/from up to 50 connected devices7
Connect with Miracast® — supports software-free, peer-to-peer wireless connectivity
BrightLink GoBoardTM Collaborative Whiteboarding Software — 1-year free trial offer8

Eco Features

RoHS compliant
Recyclable product9
Epson America, Inc. is a SmartWay™ Transport Partner10

What's In The Box:

BrightLink Pro 1485Fi
lens cover
rear cable cover
interactive touch module and cable
Quick Setup Guide
6' power cable
USB A/B cable (x1)
projector remote control with two AA batteries
HDBaseT control pad with power supply
pen holder
four (4) markers for auto screen adjustment
IR reflectors
two (2) interactive pens
battery charger and two (2) AA rechargeable batteries (for interactive pens)
Warranty statement
BrightLink GoBoard 1-year free trial

General:
Weight	21.4 lbs with cable cover (9.7 kg)
Operating Temperature	41˚ to 104 ˚F (0 ˚ to 40 ˚C)
Specifications Projector:
Illumination Technology	Laser Diode
Light Source Life	20,000 hours (Normal); 30,000 hours (Extended)3
Colour Reproduction	Up to 1.07 billion colours
Contrast Ratio	Up to 2,500,000:1
USB Plug 'n Play	Mac 10.7 or later; Windows Vista or later
Keystone Correction	Horizontal: ± 3 degrees; Vertical: ± 3 degrees
Size - projected distance	(16:9) 65" – 100"
Resolution	1080p1 (1366 x 768 x 2)
Aspect Ratio	16:9 (native), supports 4:3, 16:10, 16:6, 21:9
White Brightness - White Light Output	5,000 lumens2
Colour Brightness - Colour Light Output	5,000 lumens2
Pixel Number	1,049,088 (1366 x 768) x 3
Driving Method	Epson Poly-silicon TFT Active Matrix
Projection Method	Ceiling/wall mount/table mount
Projection System	Epson 3LCD, 3-chip technology
Power:
Power Consumption	ECO Mode: 270 W Normal Mode: 381 W Standby (Communication On): 2.0 W Standby (Communication Off): 0.5 W
Projector Dimensions:
Including feet	18.1" x 14.3" x 8.3"
Power:
Power Supply Voltage	100 – 240 V ± 10%, 50/60 Hz
Remote Control:
Operating Angle	Rear: Right/left: -55 to +55 degrees, Upper/lower: +75 to +15 degrees Front: Right/left: -30 to +30 degrees, Upper/lower: 0 to +60 degrees
Operating Distance	19.7 ft (6 m)
Features	Source search, HDMI, Computer, LAN, USB, Power, Aspect, Color mode, Volume, E-zoom, A/V Mute, Freeze, Menu, Home, Auto, Enter, Esc, Pointer, User, Pen Mode, Split, Home, ID
Projector Details:
Fan Noise	Quiet Mode: 27 dB, Normal Mode: 36 dB
Speaker	8 W x 2 stereo
Interfaces	HDMI: 3 HDBaseT HDMI out: DS 1 Computer/Component Video: 2x D-sub 15 pin Composite Video: 1x RCA (Yellow) Audio In: 3x Mini stereo Audio Out: 1x Mini stereo Microphone in: 1 USB Connector: 2x Type B (USB display, audio and mouse, k/b control interactivity) USB Connector: 2x Type A (USB memory/document camera) 1x RJ-45 Serial: 1x RS-232c Monitor Out/Computer: 1x D-sub 15 pin Integrated Wireless LAN: 802.11 b/g/n/ac Interactive Synchronization Mini stereo In Interactive Synchronization Mini stereo Out Touch Unit Connection Port
Interactive Input Device:

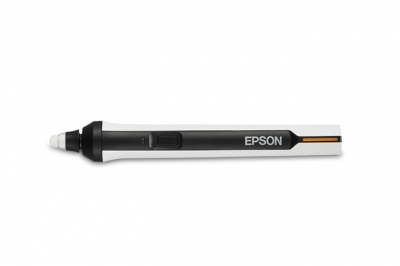

Interactive Pen Dimensions	6.3" (L) x 0.95" (W)
Interactive Pen Weight	1.1 oz (without battery)
Interactive Pen Power	AA battery, Compatible Battery Types: AA x 1, Manganese dry cell, Alkaline dry cell, Panasonic eneloop BK- 3MCCx (The suffix “x" can be blank or A-Z)
Interactive Pen Functions	Mouse functions (left and right click), Electronic pen, LED battery status indicator
Type of Interactive Input Device	Digital pen or finger
Interactive Software:
Other Software	Requirements: Epson Easy Interactive Driver (Mac and PC — required for DuoLink); Windows and Linux: driver not required Mac: Mac OS X 10.7/10.8/10.9/10.10/10.11/ macOS 10.12.x Epson Easy Interactive Tools for Windows and Mac
Interactive Specifications:
System Compatibility	Microsoft Windows Vista SP2 (All editions except for Starter), Windows 8/8.1, Windows 10, Windows 7 SP1 (All editions except for Starter) macOS 10.7/10.8/10.9/10.10/10.11/macOS 10.12.x, UBUNTU 15.10, 16.04 LTX, 16.04, 18.04, 19.04
Interactive Area	65" – 100" diagonal (16:9, 1080p1)
Calibration Method	Automatic or Manual
Interactive Modes	Whiteboard Mode: 2x pens and 6x fingers, PC-free Annotation Mode: 2x pens and 6x fingers, Computer Interactivity Mode, Easy Interactive Tools: 2x pens and 6x fingers
Interactive Technology	Infrared, 850 nm
Interactive Connectivity	Connection to the Computer: Via USB cable or wired/wireless LAN Software System Compatibility: Epson Easy Interactive Driver for Mac only; Windows driver for Multi Projection; Windows (single projector) and Linux: No driver required Mac: Mac OS X 10.7.x or later
Projection Lens:
Throw Ratio Range	(16:9) 0.27 – 0.37, (4:3) 0.37 – 0.50, (16:10) 0.30 – 0.42
Zoom Ratio	Digital zoom 1.0 – 1.35x
Focal Length	3.9 mm
F-number	1.50
Type	Manual focus
General:
Security	Kensington lock provision, security anchor bar, password-protect function
