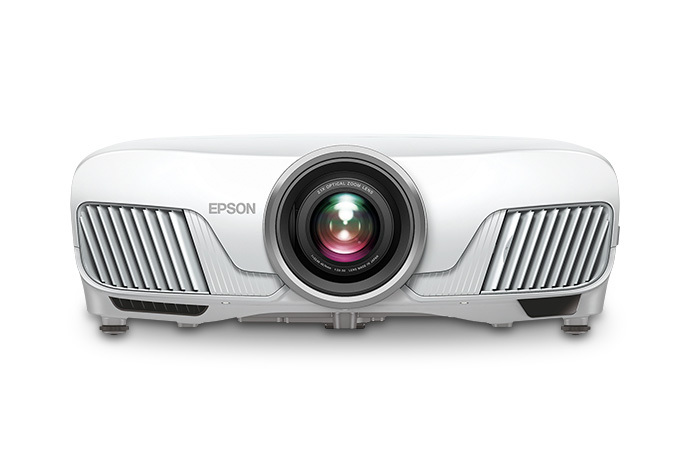

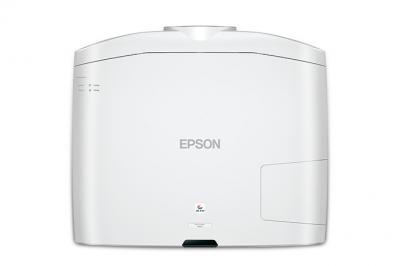

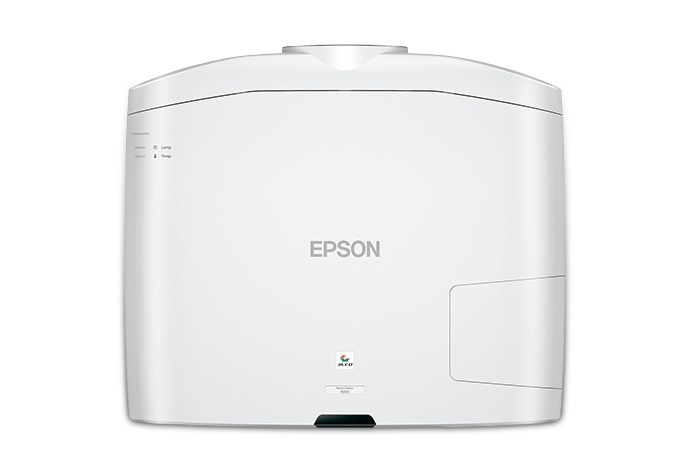

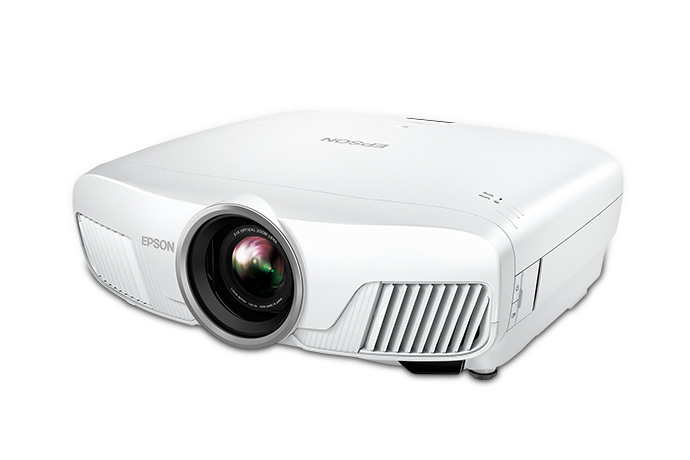

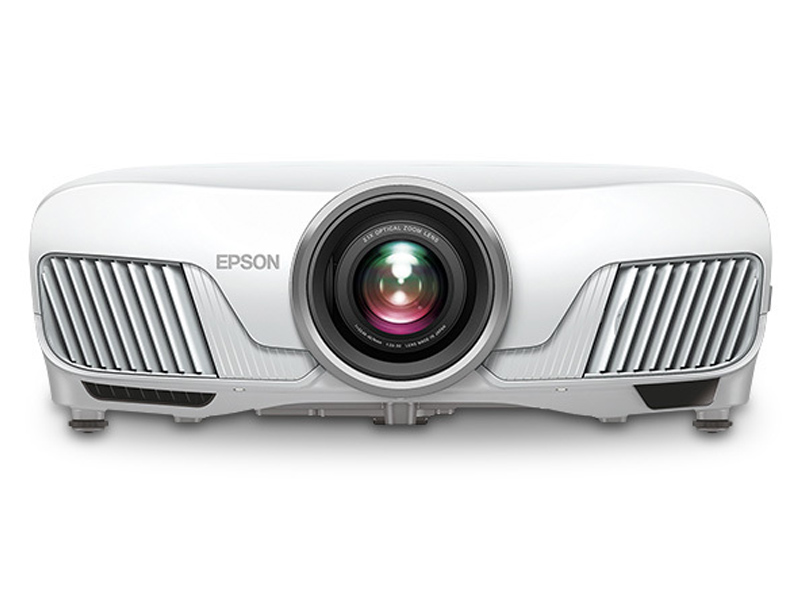

EPSON Home Cinema 4000 3LCD Projector with 4K Enhancement and HDR - V11H715120-F

An Unparalleled 4Ke Home Theatre Projector Delivering Pro-Level Performance.

Get exceptional, colour-rich performance and stunning detail with the Home Cinema 4000. Epson® PRO-UHD™ 3LCD home theatre projectors deliver a groundbreaking combination of colour, contrast and resolution for the ultimate entertainment experience. Every detail comes alive with 4K Enhancement Technology1, which accepts 4K UHD content and upscales non-4K content. An advanced, 3-Chip, 3LCD design means no colour wheel, white segment or rainbow effect. With HDR102 and L*a*b* Ultra Wide Colour Gamut, movies look extraordinary. Plus, get 100% Balanced Colour Brightness, with 2,200 lumens equal colour/white brightness4, and a Rich Black contrast ratio up to 140,000:1.

• Projection System: Epson 3LCD, 3-chip optical engine
• Contrast Ratio: Rich black, up to 140,000:1
• Colour Brightness: 2200 lumens4
• White Brightness: 2200 lumens4

Overview :

4K Enhancement Technology

Epson's 4K Enhancement Technology delivers astonishing picture quality — every subtle intricacy is captured.

High Dynamic Range (HDR)

Full 10-bit colour output; extraordinary range of brightness for images bursting with real-life colour

Bright and Colourful

Features 2200 lumens of colour brightness (colour light output) and 2200 lumens of white brightness (white light output)1.

UltraBlack™ Contrast Ratio

Up to 140,000:1 contrast ratio for rich detail in both bright and dark scenes

Smart Motorized Lens

Preset up to 10 positions for powered focus, zoom and lens shift; features 2.1x zoom and ultra wide lens shift

Ultra Wide Colour Gamut

Offers 100% coverage of the DCI-P3 colour space, the digital cinema standard



• Epson PRO-UHD with 4K Enhancement Technology1 — accepts 4K UHD content and upscales non-4K content to deliver amazing lifelike images with resolution that exceeds Full HD
• Advanced 3-Chip Design — 3LCD technology ensures no colour wheels, no white segments and no rainbow artifacts
• HDR102 High Dynamic Range and Rich Black Contrast — full 10-bit colour output and a contrast ratio up to 140,000:1 deliver an extraordinary range of colour and detail in both bright and dark scenes
• L*a*b* Ultra Wide Colour Gamut — delivers 100% of the 3 dimensional DCI-P3 colour gamut3, the digital cinema standard, with 50% wider colour gamut than Rec. 709
• 100% Balanced Colour Brightness — 2,200 lumens of equal colour and white brightness4 for vibrant, rich colour, even in rooms with ambient light
• 3-Axis Precision Motorized E-Series Lens — state-of-the-art glass elements optimized for 4K content; with powered focus, 2.1x zoom, up to ± 96% horizontal and up to ± 47% vertical lens shift, and 10 preset positions
• Delta Level colour accuracy — Low Delta E, for extremely accurate colour reproduction
• Smooth, Crisp Images — with Image Enhancement and Frame Interpolation

• RoHS compliant
• Recyclable product5
• Epson America, Inc. is a SmartWay™ Transport Partner6

What's in the box:

• Home Cinema 4000 Projector
• Power cord
• Two HDMI cable clamps
• Remote control with AA batteries
• CD ROM with user guide link
• Quick Setup Guide

Specifications :

Specifications Projector:



Projection System:

Epson 3LCD, 3-chip technology

Projection Method:

Front / Rear / Ceiling mount

Driving Method:

Poly-silicon TFT Active Matrix, 0.74"-wide panel

Pixel Number:

2,073,600 dots (1920 x 1080) x 3

Colour Brightness - Colour Light Output:

2200 lumens4

White Brightness - White Light Output:

2200 lumens4

Aspect Ratio:

Native 16:9 widescreen (4:3 resize) Compatible with 4:3 with Normal, Full or Zoom Modes

Native Resolution:

Native 1080p (1920 x 1080) with 4K Enhancement

Resize:

16:10, 4:3

Lamp Type:

250 W UHE

Lamp Life:

Up to 5,000 hours (ECO Mode); up to 4,000 hours (Medium Mode); up to 3,500 hours (High Mode)7

Throw Ratio Range:

1.35 – 2.84

Size - projected distance:

50" – 300"

Keystone Correction:

Vertical: ±30 degrees (Manual)

Contrast Ratio:

Up to 140,000:1

Colour Processing:

Full 10-bit (partial 12-bit)

Colour Reproduction:

Full-colour (up to 1.07 billion colours)

Projected Output:

HD, 2D, 3D, 1080p, 4Ke

General:



Weight:

24.3 lb

Security:

Kensington Security Lock Port

Operating Temperature:

41 ° to 95 °F (5 ° to 35 °C)

Projection Lens:



Type:

Powered focus/optical zoom/lens position

F-number:

2.0 – 3.0

Focal Length:

22.5 mm – 46.7 mm

Zoom Ratio:

1.0 – 2.1

Lens Shift:



• Vertical: ±96.
• Horizontal: ±47



Lens Cover:

Powered, Slide Lens Shutter

Other Home Projector:



Cinema Filter:

Automatically adjusts to colour mode:
(On: Cinema, Digital Cinema
Off: Natural, Black & White Cinema, Bright Cinema, Dynamic, 3D Dynamic, 3D Cinema)

Auto Iris:

Automatically adjusts to video source:
Off/On: High-speed or Normal, 2D and 3D mode

Super Resolution:

2D and 3D

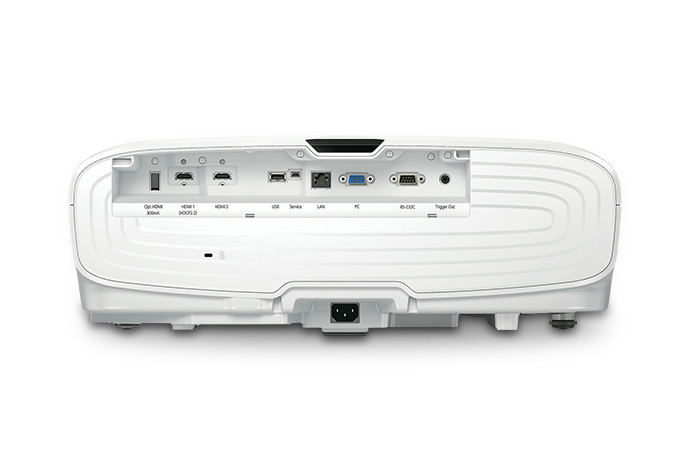

Terminal Inputs:



• HDMI® x 1 (HDCP 2.2)
• HDMI x 1 (HDCP 1.4)
• USB Type A x 2 (1 x for optical HDMI cable 300 mA power supply only)
• Mini USB x 1 (service only)
• LAN x 1 (RJ-45)
• Computer/D-sub 15 pin x 1
• RS-232c x 1



Terminal Outputs:

Trigger out 12 V DC, 200 mA maximum

Computer Compatibility:

PC, Mac®

Parental Controls:



Power Button Lock:

Hinders projector from being turned on without parental supervision

Projector Details:



Display Performance:

HDR, DCI colour gamut, 4Ke, 1080p; HD, 2D, 3D, 2D-to-3D conversion, Picture in Picture (2D only), Frame Interpolation (1080p, 24 Hz) (2D and 3D)

Colour Modes:



• 2D: Dynamic, Bright Cinema, Natural, Cinema, Digital Cinema, Black & White Cinema
• 3D: Dynamic, Cinema



Input Signal:



• Composite: 480i , 576i, 480p, 576p, 720p, 1080i, 1080p, 4K x 2K, 4K/60 Hz/4:2:0
• HDMI: TMDS



Fan Noise:

20 dB – 31 dB

Projector Dimensions:



Including feet:

20.5" x 17.7" x 6.7" (W x D x H)

Remote Control:



Features:

Front and rear directional

Operating Distance:

32 feet (10 meters)

Operating Angle:

Front: Right/Left: ± 30 degrees, Upper/Lower: ± 30 degrees
Rear: Right/Left: ± 30 degrees, Upper/Lower: + 10 ± 70 degrees

Power:



Power Supply Voltage:

100 – 240 VAC ± 10%, 50/60 Hz

Power Consumption:

373 W (High Mode), 283 W (ECO Model)
