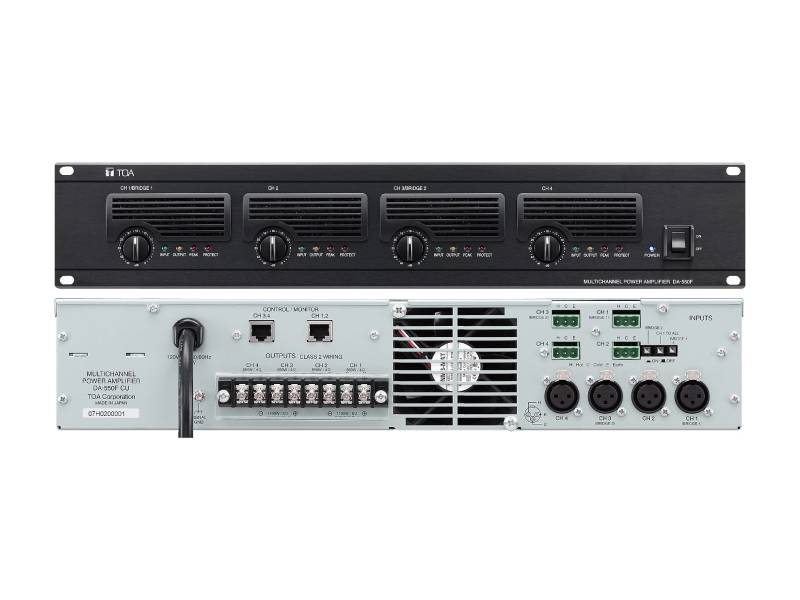

TOA Multi Channel Power Amplifier - DA-550F CU
Authorized Dealer
Price Match Guarantee
Price Match Guarantee
LR Brown offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.
Literature
The DA-550F is a 4-Channel Digital Power Amplifier featuring lightweight, compact, high power output, and high efficiency. It delivers 550 W x 4 channels (4 ohmoutput) using a switching power supply. Each channel is equipped with an independent power section. Its Control/Monitor terminals permit power ON/OFF control of the individual channels and status monitoring for the power ON/OFF on each channel, protection on each channel, and fan operation. Prepare the control panel or status monitor display panel separately. It can be mounted in an EIA Standard equipment rack (2 unit size).
| Specifications | |
|---|---|
| Power Source | 120 V AC, 50/60 Hz |
| Amplification System | Class D |
| Power Consumption | 480 W (based on UL/CSA standards), 2800 W (rated output 4 Ω), 1650 W (rated output 8 Ω) |
| Input | 4 circuits, +4 dB* (1.23 V) (input level control in maximum position), 10 kΩ, electronically-balanced, removable terminal block (3 pins), XLR-3-31 type connector, CH 1 mode ON/OFF switch (ON: CH 1 to All ch, OFF: Each ch) |
| Rated Output | 4 channels: 550 W × 4 (4 Ω), 350 W × 4 (8 Ω), 2 channels (BRIDGE): 1100 W × 2 (8 Ω), M4 screw terminal, distance between barriers: 8.8 mm (0.35") |
| Frequency Response | 20 - 20,000 Hz (-2 dB, +1 dB) |
| Total Harmonic Distortion | 0.1% (1 kHz), 0.15% (20 - 20,000 Hz) |
| Protection Circuit | Protection against excessive current flow due to overload, short circuit, unusual DC voltage output, temperature rise at power amp. heat sink (100℃ or more (212゜F)), temperature rise at power supply heat sink (80℃ or more (176゜F)) |
| S/N Ratio | 100 dB (A-weighted) |
| Crosstalk | 70 dB (A-weighted) |
| Control/Monitor | Control input: Power ON/OFF status of the individual channels, photocoupler input, drive voltage: 9 V DC (Min) - 14 V (Max), 12 V (Typ), Monitor output: Power ON/OFF status of the individual channels, Protection status of, the individual channels, Fan operation status, photocoupler open collector output, withstand voltage: 30 V DC, control current: Under 12 mA, Connector: RJ-45 connector × 2, Connection cable: Category 5 twisted pair cable for LAN (CAT5-UTP), Maximum cable distance: 600 m (656.17 yd) |
| LED Indicator | Power (blue) × 1, Input (green) × 4, Output (yellow) × 4, Peak (red) × 4, Protect (red) × 4 |
| Cooling | Forced air cooling |
| Operating Temperature | -10℃ to +40℃ (14゜F to 104゜F) |
| Operating Humidity | 90% RH or less (no condensation) |
| Finish | Panel: Aluminum, black, alumite Case: Plated steel sheet |
| Dimensions | 482 (W) × 88.4 (H) × 404.2 (D) mm (18.98" × 3.48" × 15.91") |
| Weight | 8.8 kg (19.4 lb) |
| Accessory | Removable terminal plug (3 pins) …4, Tamper-proof cap …4 |
