65" TR3BF-B Series IR Multi-Touch Point UHD IPS Digital Display - 65TR3BG-B
KEY FEATURES
- Multi Touch: Max 20 points / Max 10 writing & dual pen compatible
- Ultra HD (3,840 x 2,160 resolution)
- IPS Panel create superior picture quality
- Android OS with Chrome web browser
- Built-in OPS kit
- Supports Air Class & screen sharing
Interactive Display That Creates Collaboration
LG’s cutting-edge touch technology in the TR3BF-B Series displays support multi-touch & writing functions. This provides accurate drawing and authentic touch quality. In addition, the Air Class and web browsers support multi-directional communication and interactive learning, which will help your business succeed.
GENUINE TOUCH & WRITING EXPERIENCE
Multi Touch & Writing
The TR3BF Series can simultaneously use up to 20 points of multitouch and 10 points of writing, as well as 2 types of stylus pens. This function offers a lifelike board writing experience and makes collaboration much easier
GENUINE TOUCH & WRITING EXPERIENCE
Palm erasing
The TR3BF Series allows you to easily erase texts, pictures, etc, written on the screen by using your own hands. This is not only easier than erasing with the stylus, but also makes you feel more natural, like you're erasing a real whiteboard.
EASY CONNECT & SHARING
Air Class
Air Class supports connecting up to 30 students and offers interactive meetings for all mobile devices on the same network, providing a variety of tools such as voting, answering, and sharing project texts.
EASY CONNECT & SHARING
Screen Sharing
The TR3BF Series allows you to share screens and content with laptops and other mobile devices. This makes meetings and classes as efficient and immersive as possible.
EASY EXPANDED FUNCTIONALITY
Built-in OPS Slot
The TR3BF Series has a built-in OPS slot on the back of the digital board, allowing you to easily and conveniently utilize an OPS device, such as a computer, to provide expanded functionality.
USER FRIENDLY EXPERIENCE
Web browser
The TR3BF Series can use the Chrome web browser which is built into the Android OS, so you can search the web easily and quickly, without the need to connect to an external desktop.
USER FRIENDLY EXPERIENCE
All-in one
PC-free 4K UHD touchscreen with embedded whiteboard App on Android operation system.
SUPERIOR PICTURE QUALITY
High Resolution Clarity with Ultra HD
Using UHD will allow you to view details at four times higher resolution than FHD. Documents, images, videos, and other detailed content are displayed with less distortion in quality, which is especially important in educational and collaborating environments.
SUPERIOR PICTURE QUALITY
True Color, Immersive View
The TR3BF Series vividly shows multimedia content for the attendees. The IPS panel display allows content to be seen at various angles, regardless of where attendees are sitting. Each pixel of the IPS panel reproduces the actual image’s color with virtually no distortion.
Touch Specifications | |
---|---|
Operating System Support | Windows 7/8/10/WindowsXP/Linux/Mac/Android (WindowsXP/Linux/Mac Support one point touch) |
Protection Glass Thickness | 4T (Anti-Glare) |
Accuracy | 1.5mm |
Available object size for touch | Ø3mm↑ |
Multi touch point | Max 20 points/Max 10 writing |
Interface | USB 2.0 |
Protection Glass Transmission | 87% |
Response Time | 60ms↓ (Android)/100ms↓ (Windows) |
Touch type | IR |
Special Feature | |
Embedded Writing Software | Yes |
Accessory | |
Basic | Power Cord 3 M*1, USB Cable (Type A-Type B) 5 M*1, HDMI Cable 3 M*1, Writing Pen*2pcs, User Manual, QSG, Carton Box, Remote Control |
Media Player Compatibility | |
OPS Type Compatible | Yes |
Standard(Certification) | |
ErP / Energy Star | Yes (EU Only)/N/A |
EMC | FCC Class "A"/CE |
Sound | |
Speaker | Built in 24W (12W + 12W) |
Standard(Certification) | |
Safety | CB/NRTL |
Environment Conditions | |
Operation Humidity | 10% to 80% |
Operation Temperature | 0°C to 40°C |
MECHANICAL SPECIFICATIONS | |
Bezel Width (Off Bezel) | Top/Right/Left:17.7mm, Bottom:45.7mm |
Handle | Yes |
Bezel Color | Black |

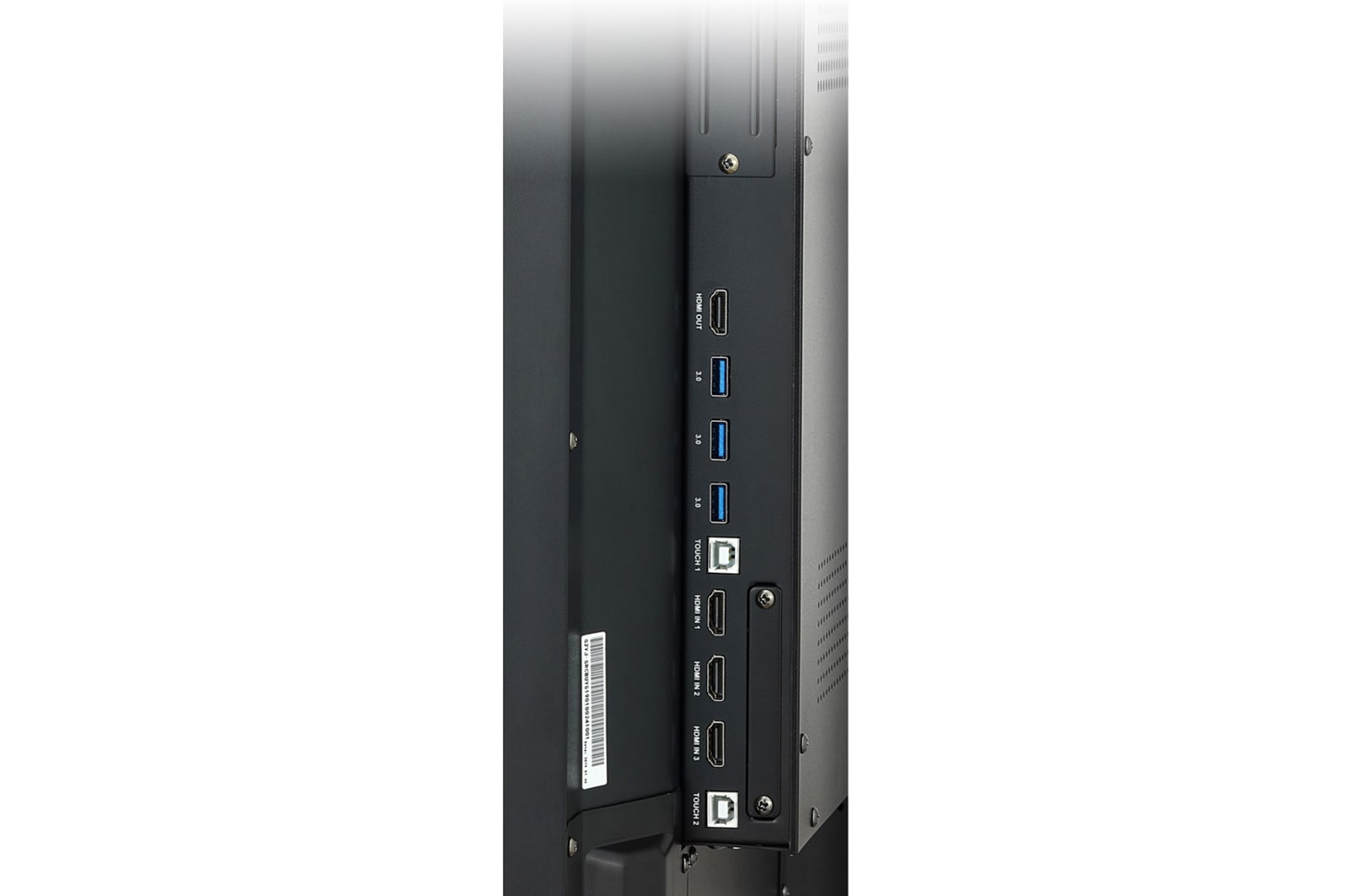

Connectivity | |
(Output) Video / Audio | HDMI (1), Optical Output/Audio Out |
(Input) External Control | RS232C In, RJ45 |
(Input) USB | USB 2.0 (3, Front : 2ea, Bottom side: 1ea Only for software update), USB 3.0 (3), Touch Out (USB2.0,B Type) (2) |
(Input) Video / Audio | HDMI (3), RGB/Audio In |
Panel | |
Operation Hours | 16Hr |
Response Time | 9ms (G to G) |
Contrast Ratio | 1,200:1 |
Native Resolution | 3,840 x 2,160 (UHD) |
Panel Technology | IPS |
Orientation | Landscape |
Life Time (Typ.) | 30,000 Hrs (Min.) |
Viewing Angle (H x V) | 178 x 178 |
Brightness(Typ., cd/m², w/ Protection Glass) | 350 |
Back Light Type | Direct |
Screen Size | 65 |
