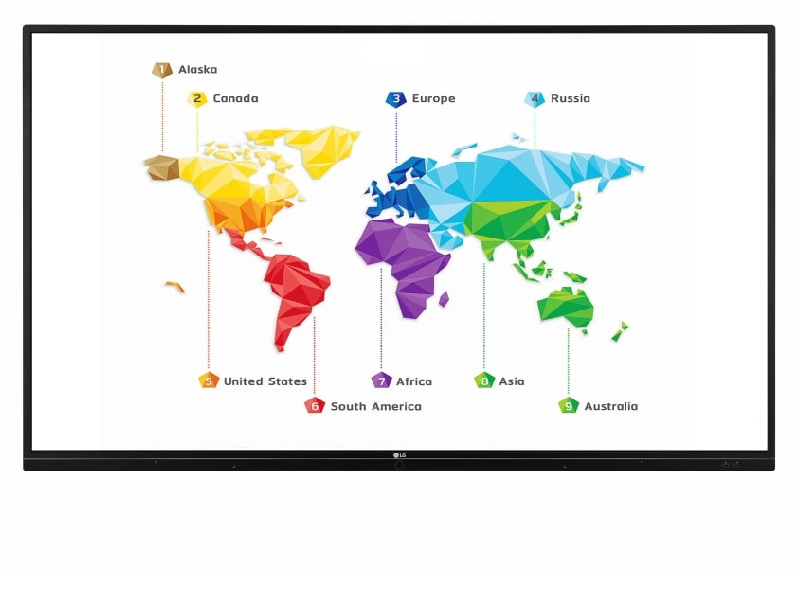

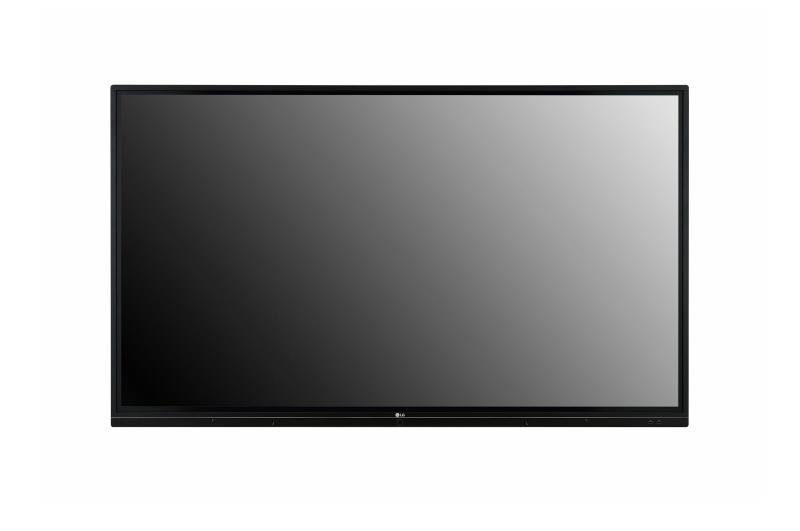

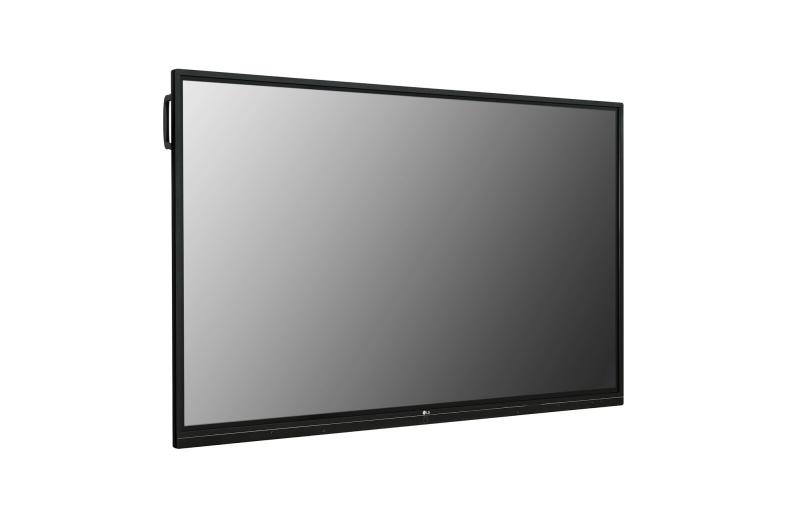

65" TR3BF-B Series IR Multi-Touch Point UHD IPS Digital Display - 65TR3BF-B
Features
- Multi-touch (Max 20 points) & Max 10 Writing
- Ultra HD (3,840 x 2,160 resolution)
- IPS Panel create superior picture quality
- Android OS with Chrome web browser
- Built-in OPS kit
- Supports Air Class & screen sharing
True Interactivity for Bringing People Together
With differentiated cutting-edge touch technology, the TR3BF Series supports multi-touch & writing functions providing accurate drawing and authentic touch quality. In addition, the Air Class and web browsers support multi-directional communication and interactive learning, which will help you achieve the successful business.
GENUINE TOUCH & WRITING EXPERIENCE
Multi Touch & Writing
The TR3BF Series can simultaneously use up to 20 points of multitouch and 10 points of writing, as well as 2 types of stylus pens. This function offers a lifelike board writing experience and makes collaboration much easier
GENUINE TOUCH & WRITING EXPERIENCE
Palm erasing
The TR3BF Series allows you to easily erase texts, pictures, etc, written on the screen by using your own hands. This is not only easier than erasing with the stylus, but also makes you feel more natural, like you're erasing a real whiteboard.
EASY CONNECT & SHARING
Air Class
Air Class supports connecting up to 30 students and offers interactive meetings for all mobile devices on the same network, providing a variety of tools such as voting, answering, and sharing project texts.
EASY CONNECT & SHARING
Screen Sharing
The TR3BF Series allows you to share screens and content with laptops and other mobile devices. This makes meetings and classes as efficient and immersive as possible.
EASY CONNECT & SHARING
Built-in OPS kit

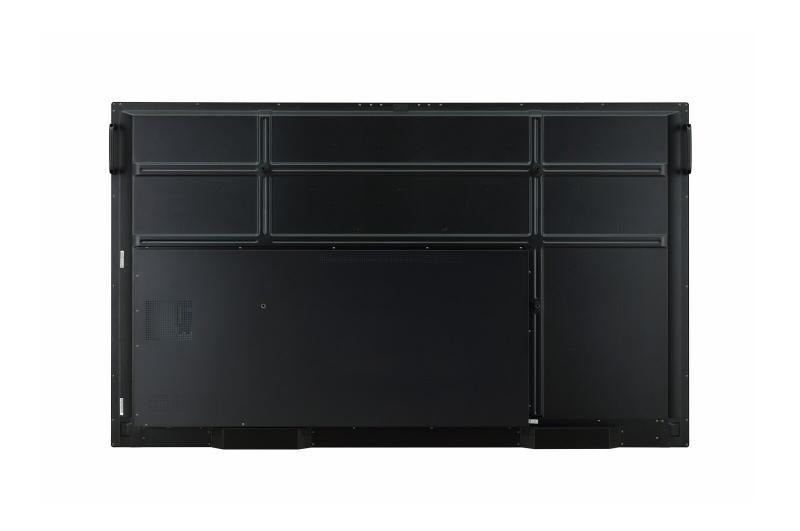

The TR3BF Series supports OPS slots, allowing you to easily and conveniently mount OPS desktop at the back of the digital board without the hassle of connecting to an external desktop, offering you more expanded functions.
USER FRIENDLY EXPERIENCE
Web browser
The TR3BF Series can use the Chrome web browser which is built into the Android OS, so you can search the web easily and quickly, without the need to connect to an external desktop.
USER FRIENDLY EXPERIENCE

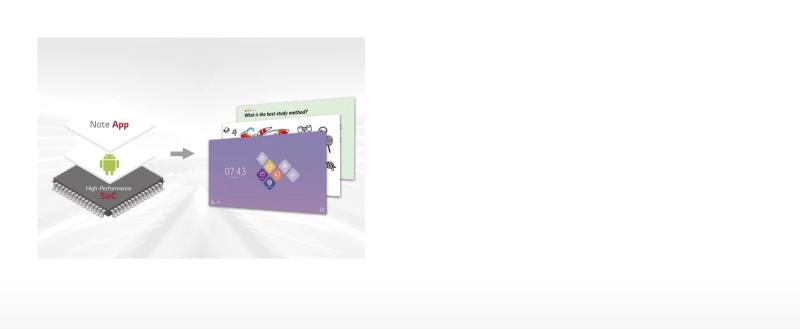

All-in one
The TR3BF Series integrates both Android and Note Apps into a high performance SoC, without a PC.
SUPERIOR PICTURE QUALITY
Various size with Ultra HD
Using UHD resolution will allow you to view details at a resolution that is four times higher than FHD, even while zoomed in. Various content such as documents, images, and videos are displayed without any distortion of image quality, which is especially important in an educational and collaborating environment.
SUPERIOR PICTURE QUALITY
True Color, Immersive View
The TR3BF Series shows multimedia content for the attendees more vividly. The IPS panel clearly displays content at various angles, regardless of where attendees are sitting. Each pixel of the IPS panel reproduces the actual image's color without any distortion.
Touch Specifications | |
---|---|
Multi touch point | Max 20 points / Max 10 writing |
Operating System Support | Windows 7/8/10/WindowsXP/Linux/Mac/Android (WindowsXP/Linux/Mac Support one point touch) |
Protection Glass Transmission | 87% |
Protection Glass Thickness | 4T (Anti-Glare) |
Interface | USB 2.0 |
Accuracy | 1.5mm |
Response Time | 60ms |
Available object size for touch | Ø3 mm ↑ |
Touch type | IR |
Special Feature | |
Embedded Writing Software | Yes |
Accessory | |
Basic | Power Cord 3 M*1, USB Cable (Type A-Type B) 5 M*1, HDMI Cable 3 M*1, Writing Pen*2pcs, User Manual, QSG, Carton Box, Remote Control |
Media Player Compatibility | |
OPS Type Compatible | Yes |
Standard(Certification) | |
ErP / Energy Star | Yes (EU Only) / No |
EMC | FCC Class "A" / CE |
Safety | CB / NRTL |
Sound | |
Speaker | Built in 24W (12W + 12W) |
POWER | |
Power Consumption (Typ. / Max.) | 145W / 275W |
Power Type | Built-In Power |
Power Supply | 100-240V~, 50/60Hz |
Environment Conditions | |
Operation Humidity | 10% to 80% |
Operation Temperature | 0°C to 40°C |
Mechanical Specification | |

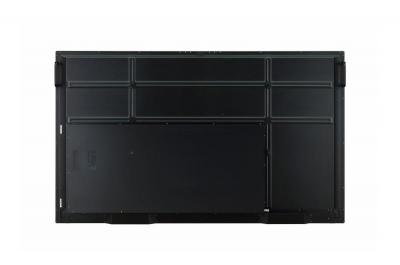

VESA™ Standard Mount Interface | 600 x 400 |
Handle | Yes |
Packed Weight | 67.6kg |
Carton Dimensions(W x H x D) with pallet | 1,700 |
Weight (Head) | 40kg |
Monitor Dimension (W | 1,488 |
Bezel Width(Off Bezel) | Top/Right/Left:17.7mm, Bottom:45.7mm |
Bezel Color | Black |

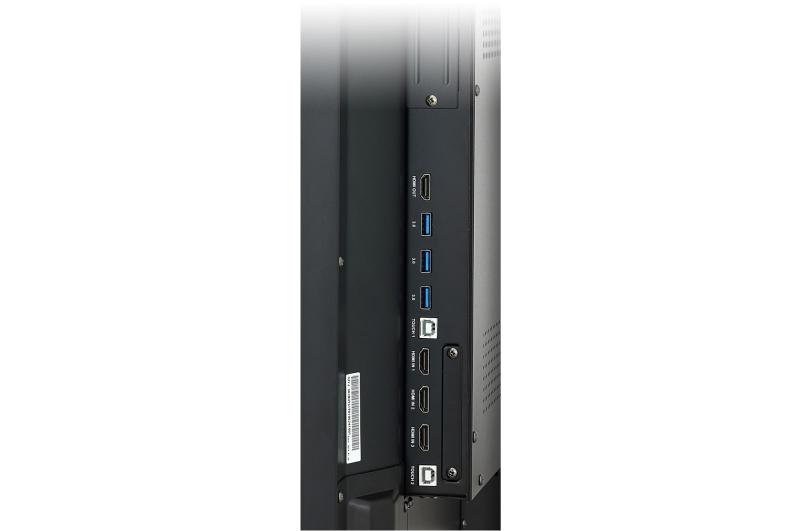

Connectivity | |
(Output) Video / Audio | HDMI (1), Optical Output / Audio Out |
(Input) USB | USB 2.0 (3, Front : 2ea, Bottom side: 1ea Only for software update), USB 3.0 (3), Touch Out(USB2.0,B Type) (2) |
(Input) External Control | RS232C In, RJ45 |
(Input) Video / Audio | HDMI (3), RGB / Audio In |
Panel | |
Orientation | Landscape |
Operation Hours | 16Hr |
Life Time (Typ.) | 30,000 Hrs (Min.) |
Response Time | 9ms(G to G) |
Viewing Angle (H x V) | 178 x 178 |
Contrast Ratio | 1,200:1 |
Brightness(w/Protection Glass) | 300 cd/m² |
Native Resolution | 3,840 x 2,160 (UHD) |
Aspect Ratio | 16:09 |
Back Light Type | Direct |
Panel Technology | IPS |
Screen Size | 65 |
