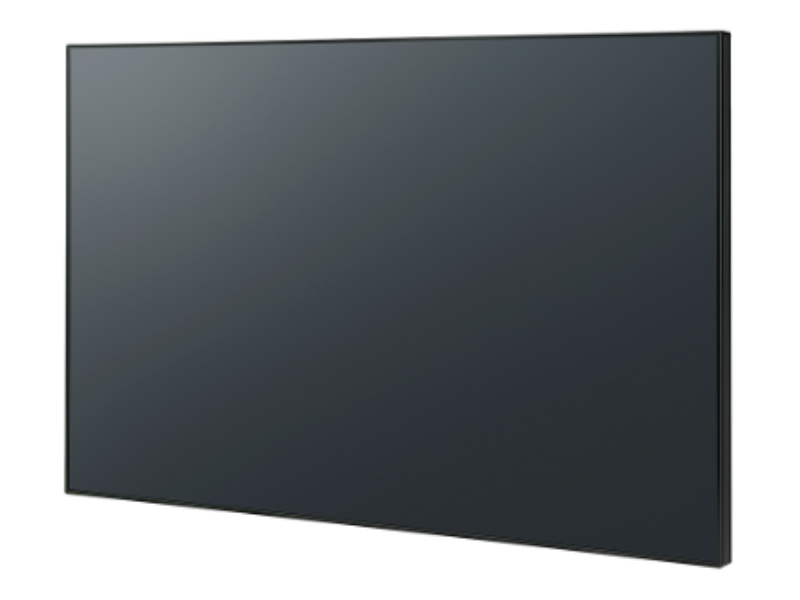

55" Panasonic Class Full HD Professional Signage Display - TH-55AF1U
Product Details
Professional signage display featuring Android™-Based OpenPort™ Platform
Key Features
- 55-inch Full HD Display
- Android™-Based OpenPort™ Platform
- 24/7 Operation
- Bright 500 cd/m² Panel
Android™-Based OpenPort PLATFORM
Simple, expandable, and reliable, the AF1 Series’ Android™-based OpenPort PLATFORM™ is powered by a high-performance SoC (System on a Chip) with a 1 GHz quad-core CPU, 1 GB of memory, and 8 GB* of internal storage. Together with verified apps created by global alliance partners for custom signage and other roles in business, these adaptive displays deliver your message with maximum impact now and in the future.
Panasonic API Expands Application Functions
Panasonic’s clear and intuitive API (Application Programming Interface) enables the expansion of application functions, allowing the display to be controlled remotely without need of RS232C or other complicated applications.
Built for Continuous 24/7 Operation
Use of quality electronic components guarantees dependable 24-hour operation seven days a week, even in portrait orientation. Tilt installation of up to 45 degrees forward or backward is also supported. This makes the AF1 Series ideal for signage installations in various locations, such as public spaces, shops, malls, and restaurants.
Specifications | |
---|---|
Screen Size (Diagonal) | 55-inch (1388 mm) |
Aspect Ratio | 16:9 |
Panel Type | IPS Panel / Edge-LED |
Effective Display Area (W x H) | 47.6" x 26.7" (1210 x 680 mm) |
Resolution (H x V) | 1920 x 1080 pixels |
Brightness | 700 cd/m² |
Contrast Ratio | 1300:1 |
Dynamic Contrast Ratio | 50,000:1 |
Response Time (G to G) | 8 ms |
Viewing Angle (Horizontal/Vertical) | 178° / 178° (CR ≧ 10) |
Panel Life (Typical) | Approx. 60,000 hours |
Panel Surface Treatment | Anti-Glare (Haze 10%) |
Built in Speakers | 20 W (10 W + 10 W) |
Orientation | Landscape / Portrait |
Digital Link | Yes |
Protective Glass | -- |
Function Slot | SLOT 2.0 |
