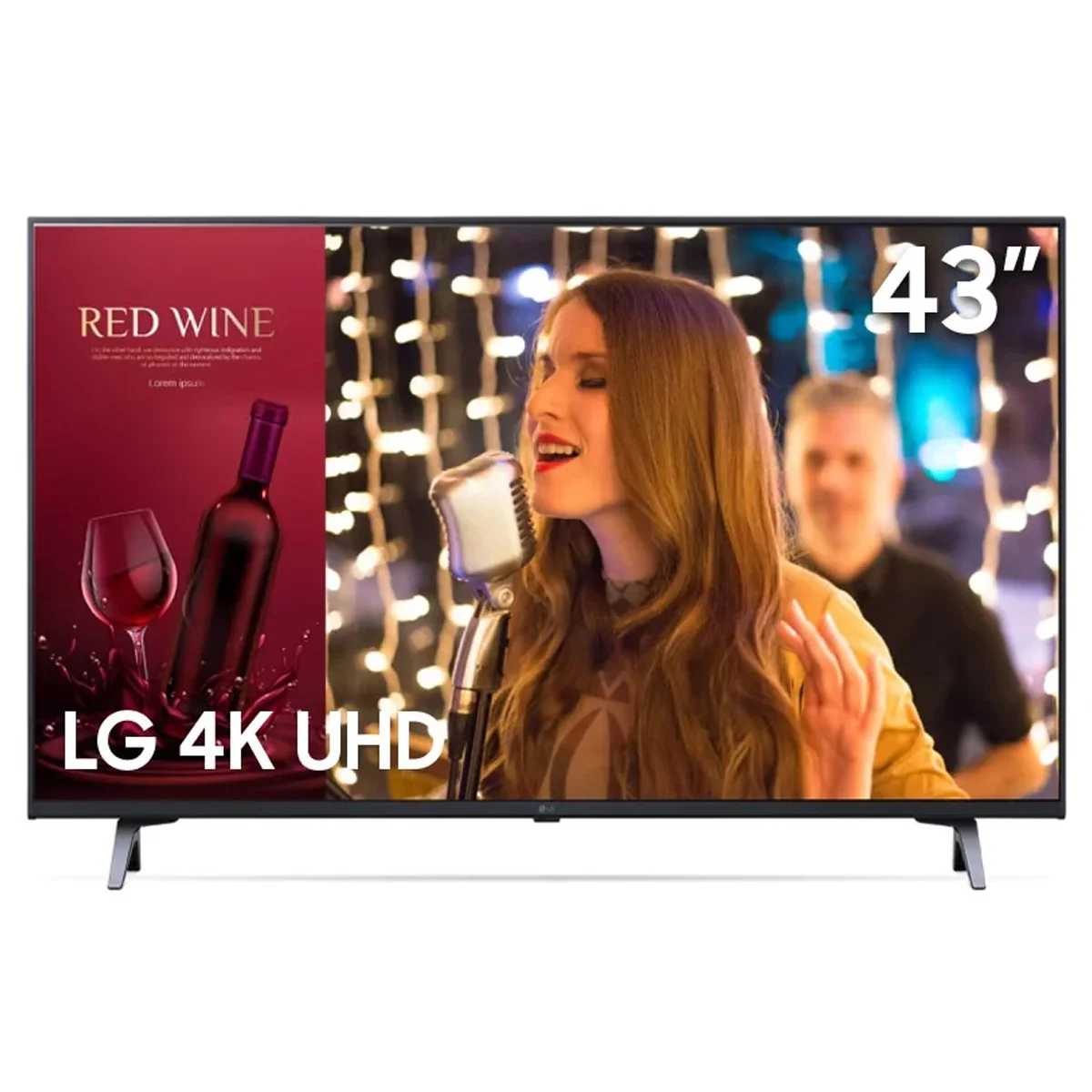

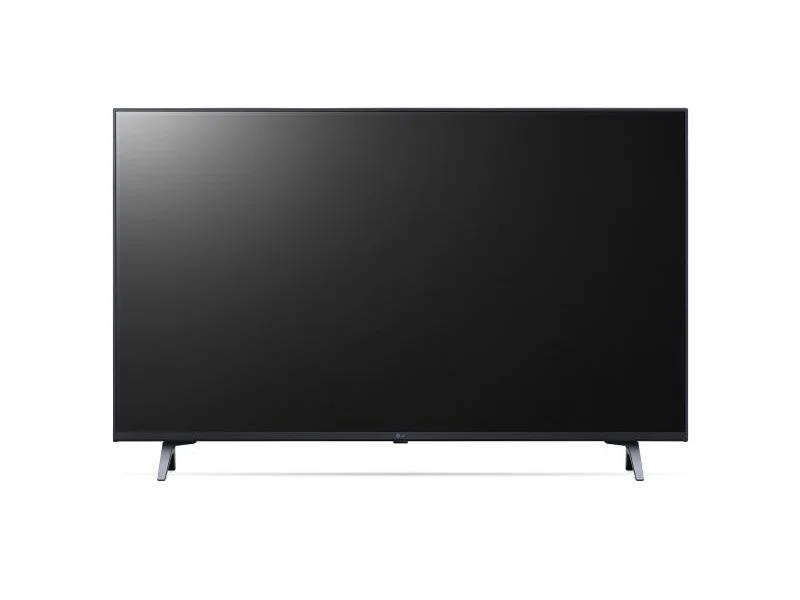

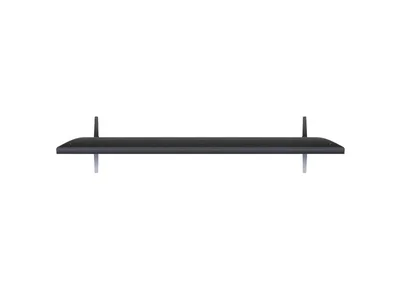

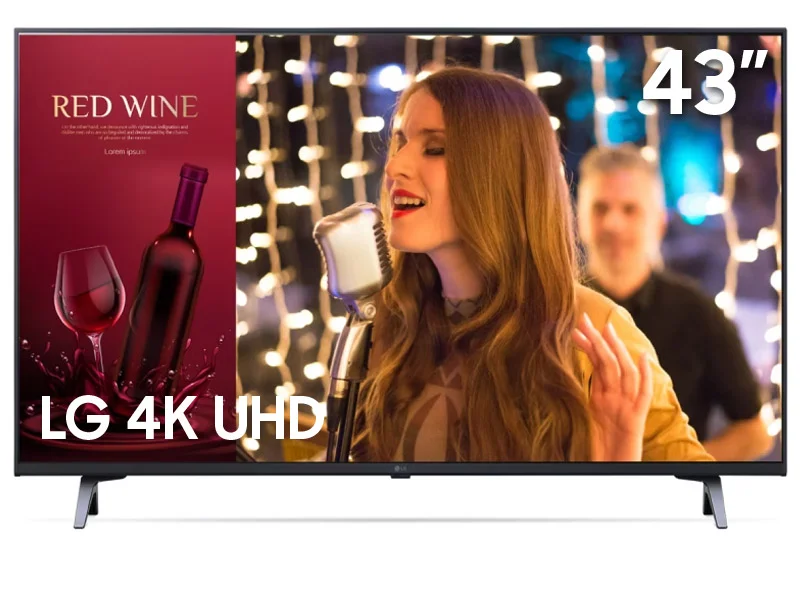

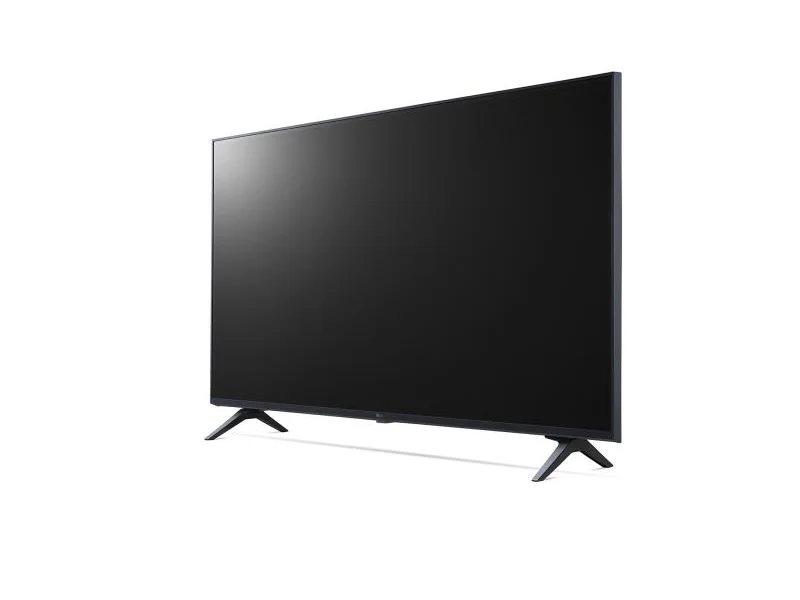

43" LG 43UR640S9UD HDR 4K UHD Signage TV
LG TV Signage with Essential Function
* All images in this web page are for illustrative purposes only.
Superb Picture Quality with Ultra HD Resolution
With the resolution that is 4 times higher than FHD, it makes the colour and details of the contents more vivid and realistic.

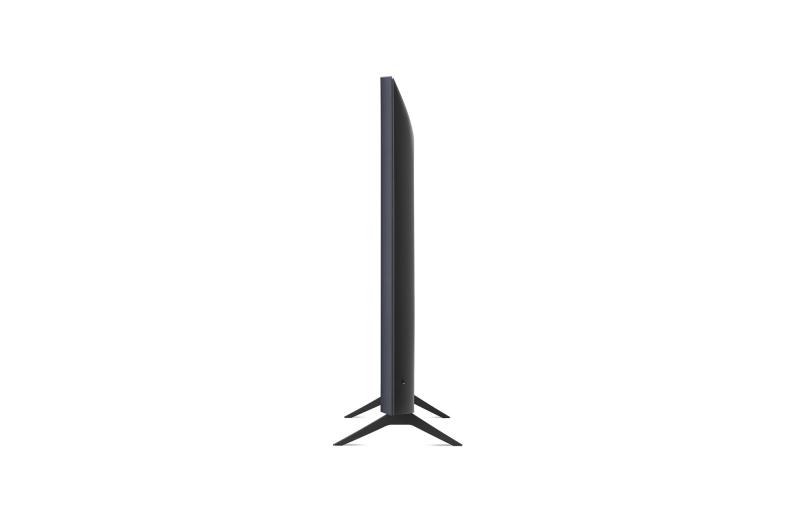

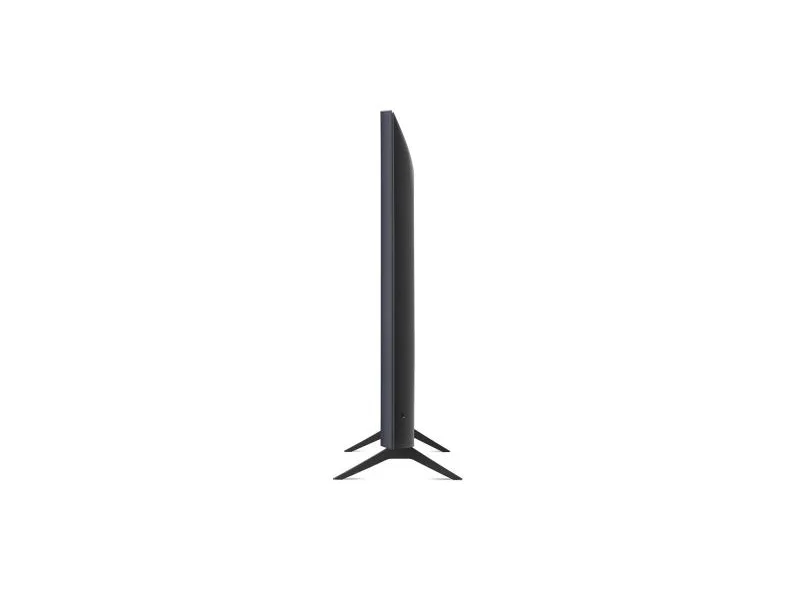

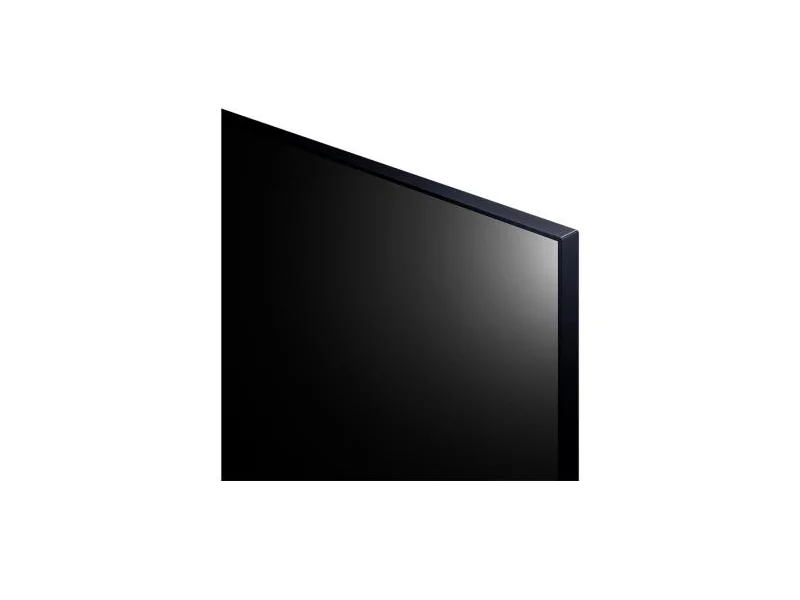

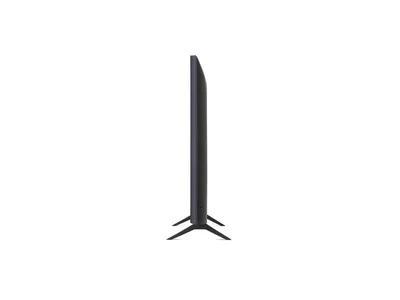

Improved Design with Slim Depth
This series is thinner than LG conventional* model to save space and enable easy installation. In addition, its sophisticated ahsed blue colour improves the decor of the space where the product is installed.
* 'LG Conventional' refers to LG UT640S series.
High-Performance with LG webOS 6.0
LG webOS 6.0, upgraded in SoC* and web engine, is available on UR640S series for a smooth execution of several tasks. LG webOS smart signage platform enhances user convenience with intuitive GUI.**
* SoC : System On Chip
** GUI : Graphical User Interface
Embedded Content & Group Management
The embedded Content and Group Management System allows you to edit and play content, schedule playlists and groups, and control signage via remote control, mouse and mobile phone without the use of separate PC or software. This makes content management easy and user-friendly.
LG's Simple Advertisement Helper, Promota
Using LG's Promota* application, downloadable on a mobile device, you can easily create your own display contents. With Promota, you can add text and images to create an online profile for your business as well as deliver information such as event news, seasonal menus, promotions, and even more to your customers while recommending easy-to-use templates relevant to your industry.
* LG Promota can be downloaded from the App Store and Google Play store.
Versatile Content Management with LG SuperSign CMS
LG SuperSign CMS is integrated management program supporting creation and management of digital media and content deployment, optimized for LG signage. With its simple and intuitive menus and layout options, it enhances efficiency for content creation and editing, scheduling and distribution, improving user experience. In addition, it supports multiple displays and accounts, is able to be linked to external databases, and allows server access from mobile devices.
* LG SuperSign CMS is sold separately.
Quick & Easy Signage Control with LG Supersign Control
SuperSign Control is the basic control software, and it can manage up to 100 displays through a single account and server. Power, volume, and scheduling can be remotely adjusted, and firmware updates supported.
* LG SuperSign Control needs to be purchased separately.
Display Power Management Support
Display Power Management (DPM) can be configured to be On only when there is a TV signal present to manage power more efficiently.
Real-Time Promotion
With Beacon and Bluetooth® Low Energy (BLE), shop managers can provide coupons and information in real-time.
Content Sharing
Content Mirroring among devices is available on a same Wi-Fi network.
Wireless Access Point
UR640S series operates as a virtual router which can be an wireless access point for mobile devices.
Compatible with AV Control Systems
The UR640S series supports Crestron Connected®* for high compatibility with professional AV controls to achieve seamless integration and automated control**, boosting business management efficiency.
* Initial setting from display is required for Crestron Connected® compatibility.
** Network based control
Compatible with Video Conference System
For effective visual meeting, the UR640S series supports its compatibility with Cisco solutions that offers powerful and integrated control* for a smarter video conference.
* Using an HDMI cable connection (HDMI cable is optional)
Easy Menu Setup forVertical Needs
UR640S series increases users' convenience by organizing frequently used menus* by industry.
* Pre-set Support Vertical : Corporate / Government / Retail, Meeting room
Real-Time LG ConnectedCare Service
Maintenance is easy and fast with the optional LG ConnectedCare* service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, supporting the stable operation of clients' businesses.
* The availability of the 'LG ConnectedCare' service differs by region, and it needs to be purchased separately. So please contact the LG sales representative in your region for more details.* Pre-set Support Vertical : Corporate / Government / Retail, Meeting room
Accessories | |
---|---|
Power Cable | YES (1.8M, Straight Type) |
Remote type | L-Con |
AUDIO (SOUND) | |
LG Sound Sync | YES |
Speaker (Audio Output) | 20W |
BROADCASTING SYSTEM | |
Analog (NTSC / SECAM / PAL) | NTSC |
Digital | ATSC / Clear QAM |
CONNECTIVITIES | |
Audio Line Out(3.5mm Phone jack) | YES |
Digital Audio (Outputs) | YES (Optical) |
HDMI | YES (3ea) |
LG SVC only (Phone jack type) | YES |
RF In | YES (1ea) |
RJ45 | YES (LAN) (Usage Purpose) |
RS-232C (D-Sub 9pin / Phone jack) | YES (Phone jack) |
USB | YES (1ea / 2.0) |
Design | |
Front Color | Ashed Blue |

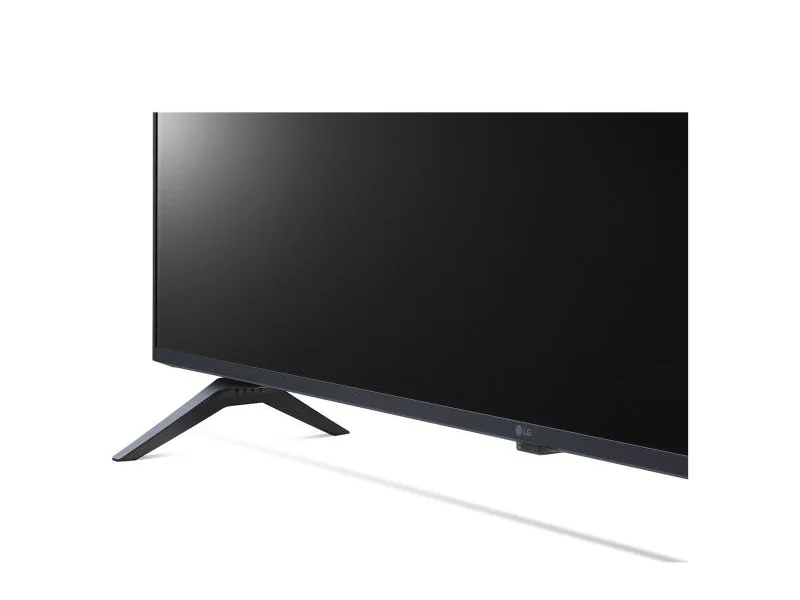

Stand Type | 2 Pole |
Tool Name | UP8000 |
DIMENSIONS/WEIGHT | |
Bezel Width (L/R/U/B, Off Bezel) | 6.9/6.9/6.9/18.4mm |
Bezel Width (L/R/U/B, On Bezel) | 12.8/12.8/12.8/19.9mm |
Shipping Dimensions(WxHxD) | 1055 x 660 x 142mm / 41.53 x 25.98 x 5.59 Inch(es) |
Dimensions without stand(WxHxD) | 967 x 564 x 57.1mm / 38.07 x 22.20 x 2.24 Inch(es) |
Dimensions with stand(WxHxD) | 967 x 622 x 216mm / 38.07 x 24.48 x 8.50 Inch(es) |
Shipping Weight | 11.0kg |
Weight without Stand | 8.8kg |
Weight with Stand | 8.9kg |
Display | |
Brightness (Typ.) | 300 nit |
Resolution | 4K Ultra HD (3,840 x 2,160) |
Screen Size | 43 (Inch) |
HOSPITALITY FEATURE | |
Diagnostics | YES (Self Diagnostics(USB)) |
Energy Saving mode | YES |
External Speaker Out / Line Out | YES (Line Out) |
Hotel Mode / PDM / Installer Menu | YES |
HTNG-CEC (Version) | YES |
Insert Image | YES |
IR Out | YES (RS-232C) |
Lock mode | YES (Limited) |
Multi IR Code | YES |
Port Block | YES |
RJP (Remote Jack Pack) Compatibility | YES |
Simplink(HDMI-CEC) (Version) | YES (1.4) |
SNMP | YES |
USB Cloning | YES |
Welcome Screen (Splash Image) | YES |
WOL | YES |
INFO | |
Category | Smart TV Signage |
Mechanical | |
Kensington Lock | YES |
VESA Compatible | 200 x 200mm |
POWER SPEC. | |
Power Consumption(Max) | 119.6W |
Power Consumption(Typ) | 97.2W |
Power Supply (Voltage, Hz) | AC 120V, 50/60Hz |
Standby Power Consumption | Under 0.5W |
SMART FUNCTION | |
webOS version | webOS 6.0 |
Bluetooth | YES |
Bluetooth Audio Playback | YES |
DIAL | YES |
HDMI-ARC | YES (HDMI2) |
Mood Display | YES |
Screen Share | YES |
Soft AP | YES |
Web Browser | YES |
Wi-Fi | YES |
STANDARD | |
EMC | FCC |
Others | EPEAT, ISTA6 |
Safety | UL |
SUPERSIGN SW COMPATIBILITY | |
Control / Control Plus | YES |
CMS(Premium) | YES |
LG Connected Care | YES |
Simple Editor | YES |
VERTICAL FUNCTION (CORPORATE/RETAIL) | |
Crestron Certi. Compatibility | YES |
BEACON | YES |
CISCO Certi. Compatibility | YES |
DPM (Digital Power Management) | YES |
Embedded CM (Contents Manager) | YES |
Embedded GM (Group Manager) | YES |
Fail Over | YES |
NTP Server Setting | YES |
NTP sync timer | YES |
Play Via URL | YES |
Promota / Mobile CMS | YES |
RTC (Real Time Clock) | YES |
Time scheduler | YES |
Vertical Setup | YES |
Video | |
HDR_HDR 10 Pro | YES |
HDR_HLG (Hybrid Log Gamma) | YES |
